Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB15RKW01-05-BJSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,665 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | Incandescent, White | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
DLB2145W01-01BSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,441 |
|
Datasheet |
DLB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 50°C |
|
|
MB2181SS1W03-CCSWITCH PUSHBUTTON 4PDT 6A 125V NKK Switches |
1,209 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
LB15SKW01-12-BJSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,722 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | Incandescent, White | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

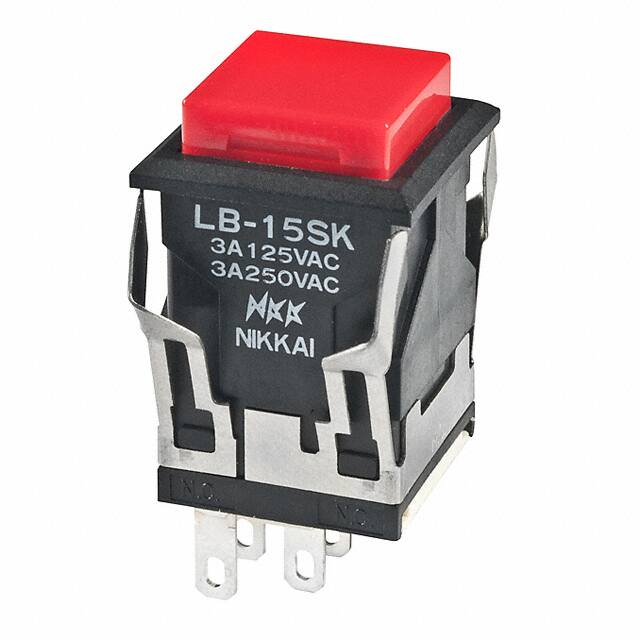

LB15SKW01-05-CJSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,983 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | Incandescent, Red | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB15SKW01-12-CJSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,752 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
MB2011SS1G01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,811 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2011SS1W01-BFSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
2,800 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2011LS1W01-CASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
3,565 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

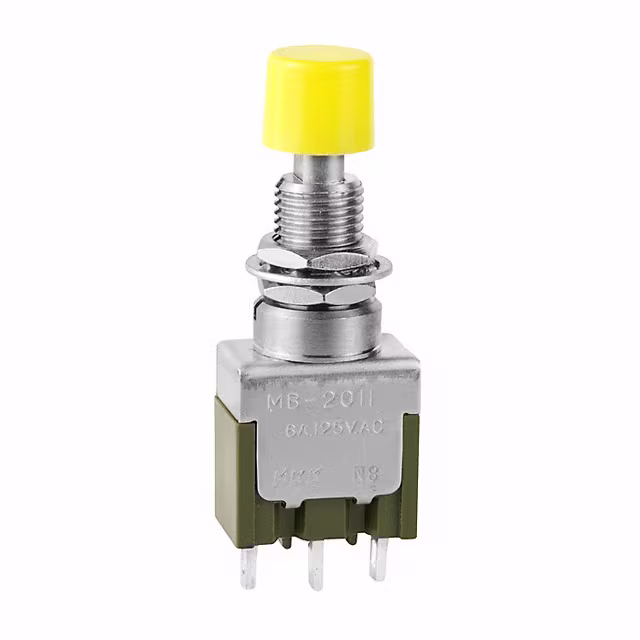

MB2011SS1W01-BESWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
4,426 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
