Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB15NKW01-5C05-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,027 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15RKW01-5D24-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,417 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15CKW01-5D24-JDSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,002 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

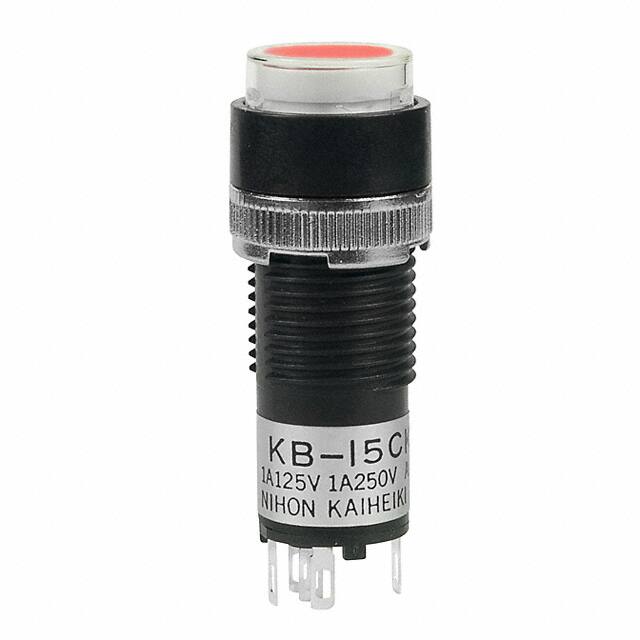

KB15CKW01-5C12-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,762 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-5F05-JFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,804 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-5F24-JFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,733 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-5C12-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,253 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

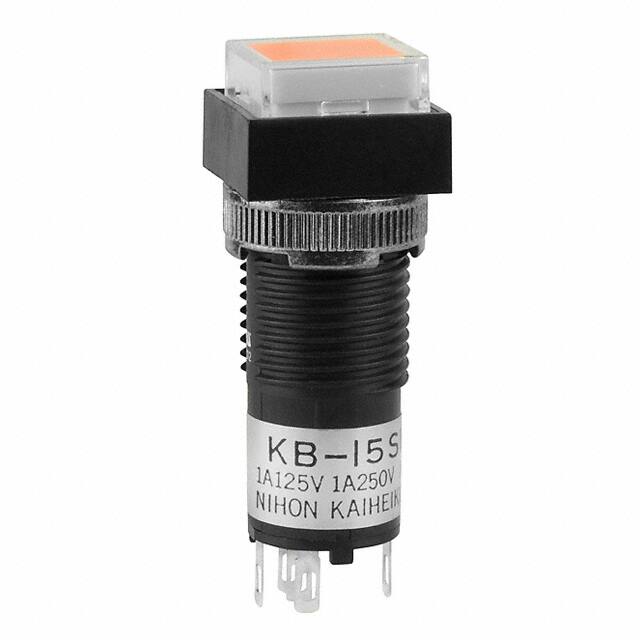

KB15SKW01-5D24-JDSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,067 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-5D24-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,576 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

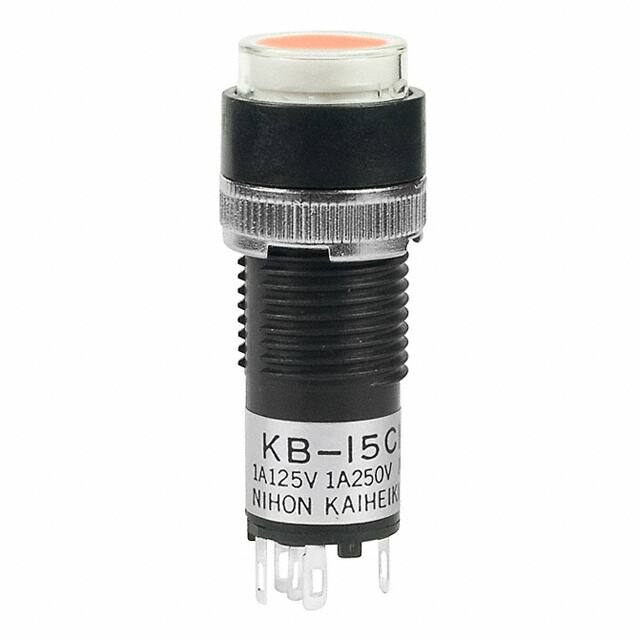

KB15CKW01-5D12-JDSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,682 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
