Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

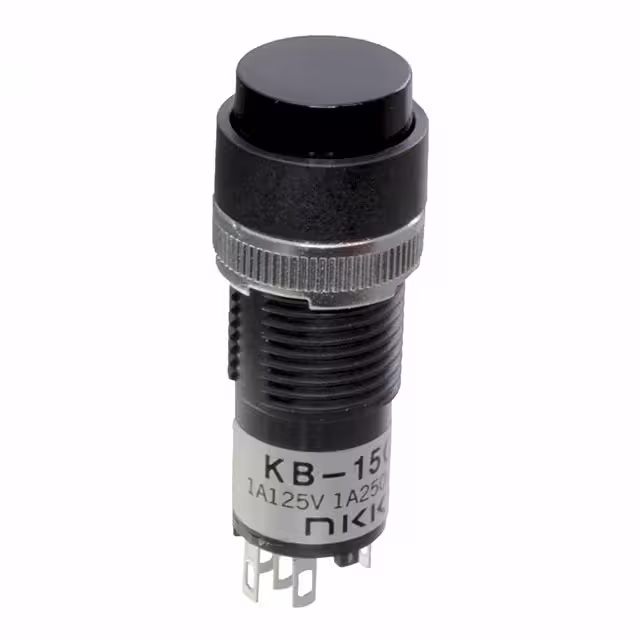

KB15CKW01-ASWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,687 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB15CKW01-GGSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,454 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB15KKW01-FFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,208 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15MKW01-ASWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,682 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

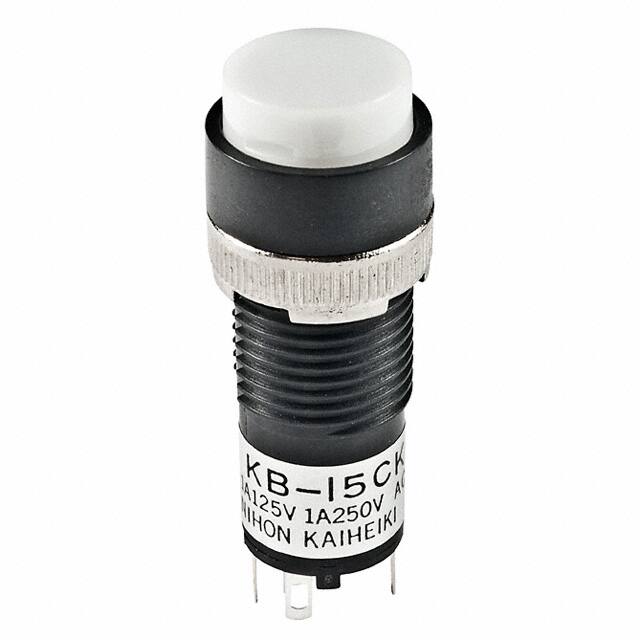

KB15CKW01-BBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,787 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15CKW01-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,889 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15SKW01-FFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,083 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15CKW01-EBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,750 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15RKW01-BBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,501 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB15SKW01-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,257 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
