Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

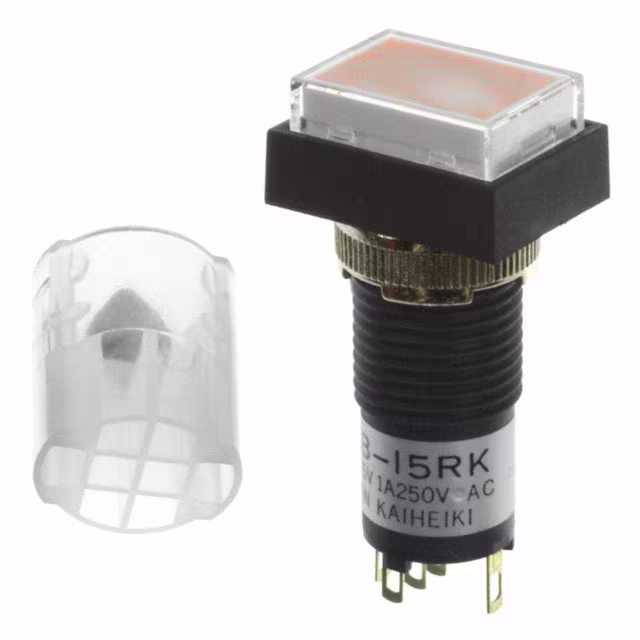

KB15RKW01-05-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,471 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | Incandescent, Red | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15SKW01-05-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,467 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | Incandescent, Red | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-05-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,924 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | Incandescent, Red | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-12-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,221 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | Incandescent, Red | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-05-JESWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,330 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Yellow Filter/Diffuser) | Incandescent, Yellow | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15MKW01-05-JGSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,988 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | Incandescent, Blue | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-FFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,952 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | Incandescent, Green | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-05-JFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,794 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

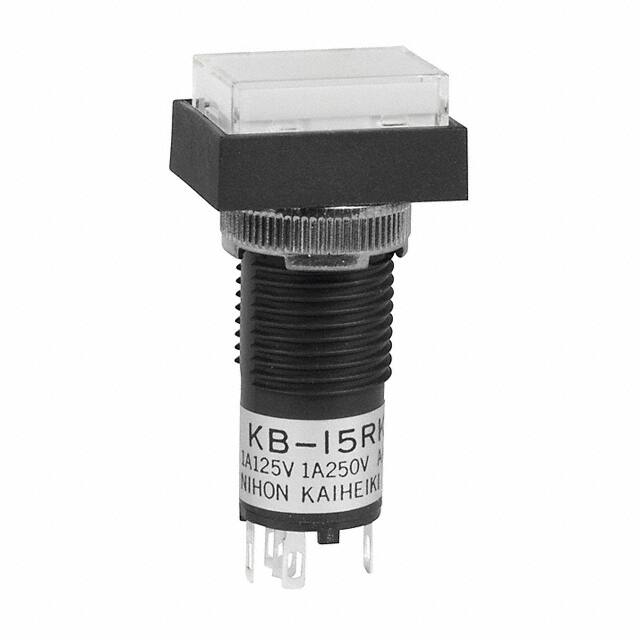

KB15RKW01-12-JGSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,115 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Blue Filter/Diffuser) | Incandescent, Blue | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-12-JESWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,194 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Yellow Filter/Diffuser) | Incandescent, Yellow | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
