Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB25SKW01-5D24-JDSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
2,344 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25SKW01-5F12-ABSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
4,016 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

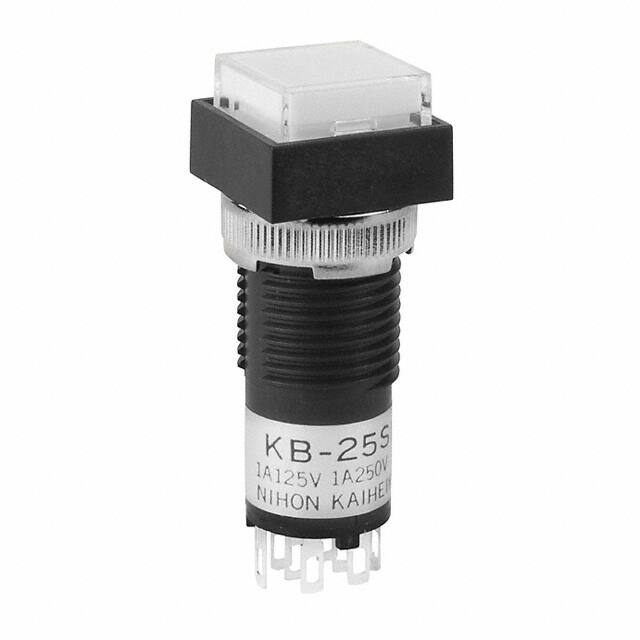

KB25SKW01-6B-JBSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
4,050 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB25SKW01B-ASWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
3,202 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB25SKW01-BBSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
2,861 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

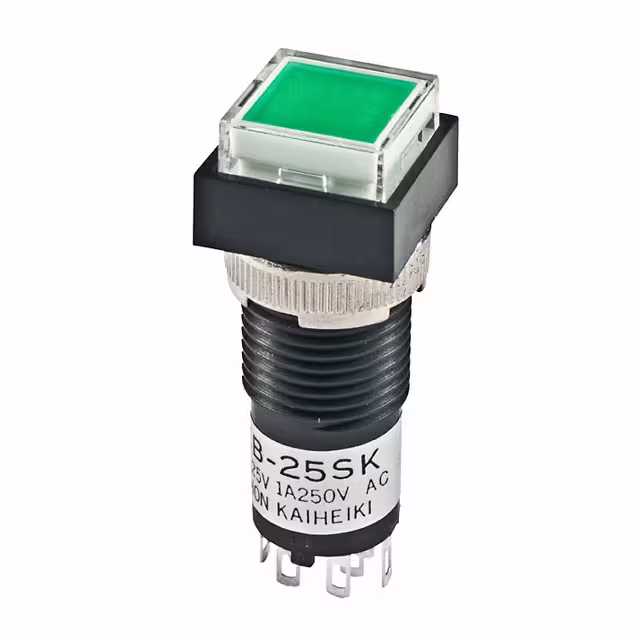

KB25SKW01-JFSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
3,701 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB26CKG01-6B-JBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,921 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKG01-6F-JBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,503 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKG01-6G-JBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,752 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

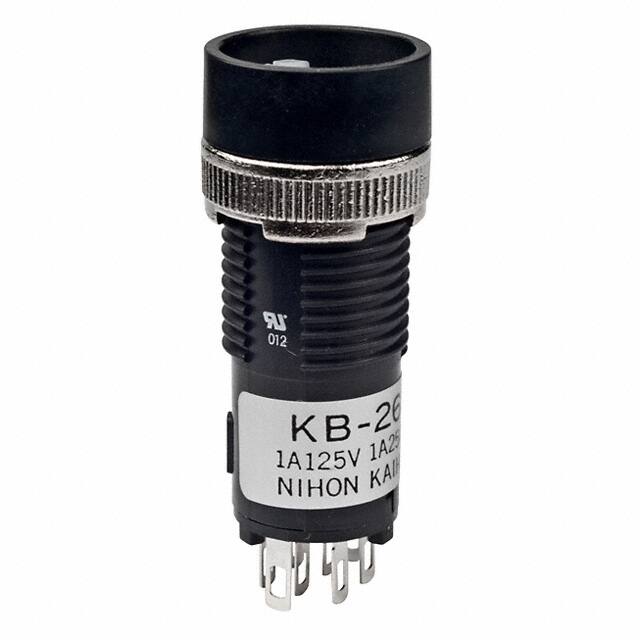

KB26CKW01/USWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
3,250 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
