Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB16SKG01-12-EJSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,302 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Yellow | Incandescent, Yellow | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

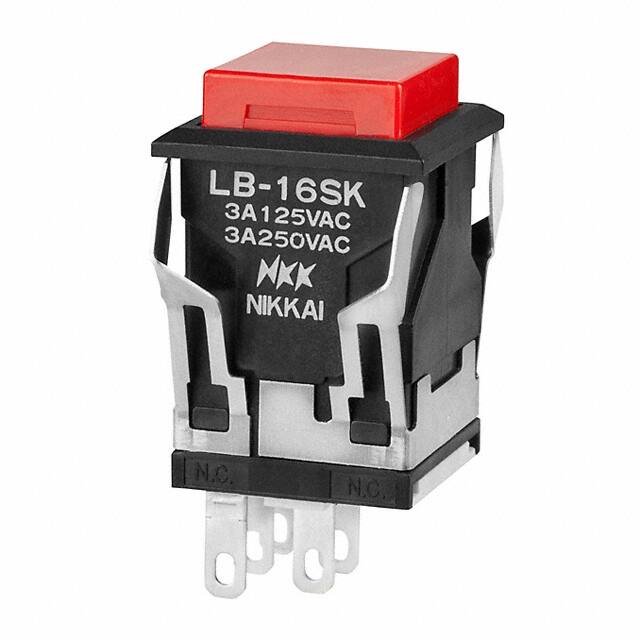

LB16SKW01-12-CJSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,263 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16SKW01-12-EJSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,411 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow | Incandescent, Yellow | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16SKW01-12-JCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,263 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16SKW01-12-JESWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,086 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Yellow Filter/Diffuser) | Incandescent, Yellow | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16WKG01-12-EJSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,641 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Yellow | Incandescent, Yellow | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB25CKW01-12-CJSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,946 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB25CKW01-28-FJSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,806 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | Incandescent, Green | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB25RKG01-28-JBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
1,195 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | Incandescent, White | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

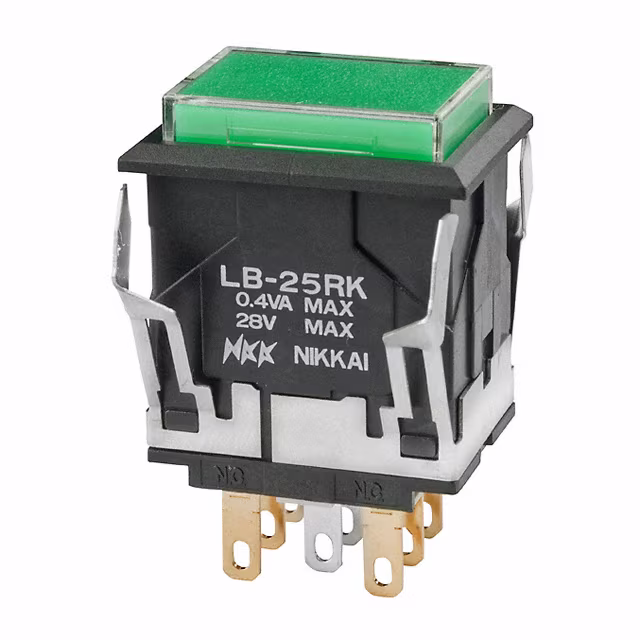

LB25RKG01-28-JFSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,558 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
