Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

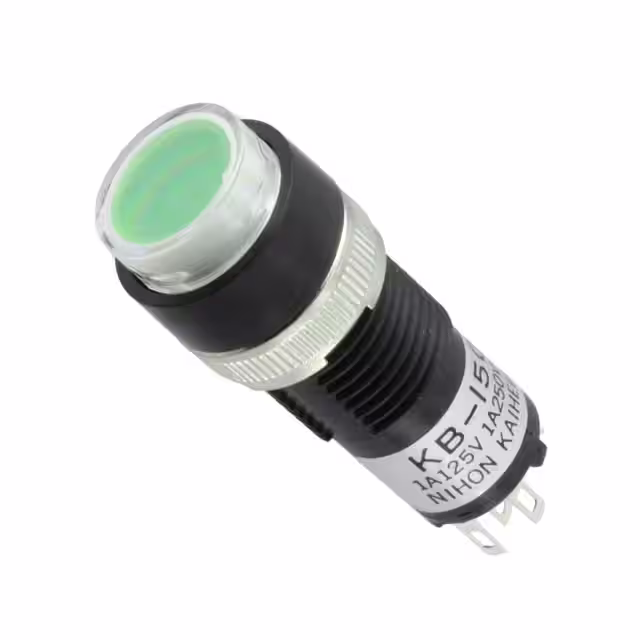

KB15CKW01-5F24-JFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,641 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15CKW01-5F-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,964 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-CBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,900 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15KKG01-5C-JCSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,606 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15KKW01-01-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,332 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | Neon, Red | 110 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15KKW01-05-CBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,844 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15KKW01-05-FBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,223 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15KKW01-05-GBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,586 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Blue (White Filter/Diffuser) | Incandescent, Blue | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15KKW01-5C-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,258 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15KKW01-5D12-JDSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,535 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
