Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB16MKW01-01-JESWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,400 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | Neon, Yellow | 110 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16MKW01-05-CBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,859 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16MKW01-12-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,095 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | Incandescent, Red | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16MKW01-12-GBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,897 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | Incandescent, Blue | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16MKW01-28-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,203 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | Incandescent, Red | 28 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16MKW01-28-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,324 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | Incandescent, Red | 28 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16MKW01-5C12-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,012 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

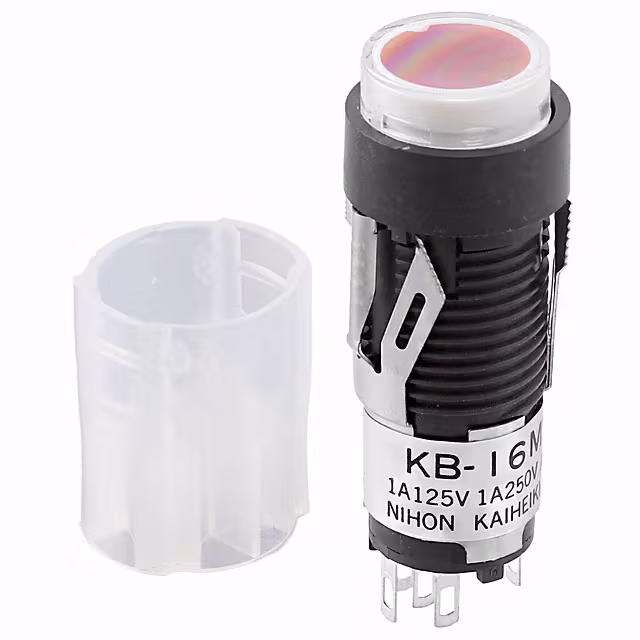

KB16MKW01-5C12-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,089 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16MKW01-5C24-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,410 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16MKW01-5C-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,782 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
