Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB285-015HSWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
2,759 |
|
Datasheet |
SB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC) | 125 V | - | Round, Plunger, Metal | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
SCB25P15B-4CASWITCH PUSHBUTTON DPDT 15A 125V NKK Switches |
4,827 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
SCB25S10BSWITCH PUSHBUTTON DPDT 10A 125V NKK Switches |
2,861 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 10A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
UB15SKG03RGBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,822 |
|
Datasheet |
UB | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | - | LED, Blue/Green/Red | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
UB16SKW03FSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,530 |
|
Datasheet |
UB | Bulk | Obsolete | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
UB215KKG016CF-4J01SWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,182 |
|
Datasheet |
UB2 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | ON/OFF | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

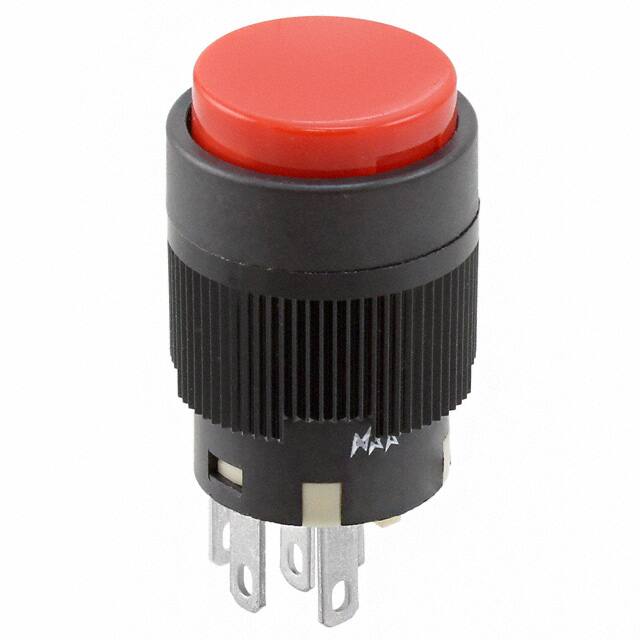

YB15CKG01-12-CBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,322 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15CKG01-12-GBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,065 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | Incandescent, Blue | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15CKW01-05-FBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,359 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15CKW01-12-CBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,600 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
