Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP0215ASAKG03RGBP-3SJBKP-SERIES MINIATURE AUDIO/VIDEO NKK Switches |
1,500 |
|
- |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile/Audible Feedback | - | -25°C ~ 50°C |
|
|
KP0215ASAKG03RGBP-3TJBKP-SERIES MINIATURE AUDIO/VIDEO NKK Switches |
2,806 |
|
- |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile/Audible Feedback | - | -25°C ~ 50°C |
|
|
KP0215ASBKG03RGBP-1FJBKP-SERIES MINIATURE AUDIO/VIDEO NKK Switches |
4,528 |
|
- |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile/Audible Feedback | - | -25°C ~ 50°C |
|
|
KP0215ASBKG03RGBP-1SJBKP-SERIES MINIATURE AUDIO/VIDEO NKK Switches |
1,222 |
|
- |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile/Audible Feedback | - | -25°C ~ 50°C |
|
|
KP0215ASBKG03RGBP-1TJBKP-SERIES MINIATURE AUDIO/VIDEO NKK Switches |
3,527 |
|
- |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile/Audible Feedback | - | -25°C ~ 50°C |
|
|
KP0215ANBKG036BMINIATURE ILLUMINATED PUSHBUTTON NKK Switches |
2,836 |
|
Datasheet |
KP | - | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
KP0215ANBKG036B-2SJBMINIATURE ILLUMINATED PUSHBUTTON NKK Switches |
2,090 |
|
Datasheet |
KP | - | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

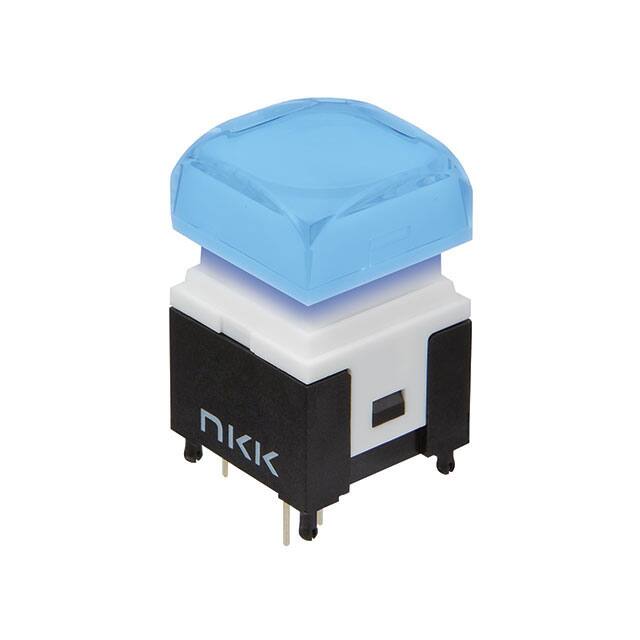

KP0215ANBKG036G-2SJBMINIATURE ILLUMINATED PUSHBUTTON NKK Switches |
4,942 |
|
Datasheet |
KP | - | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
KP0215ANBKG036G-3FJBMINIATURE ILLUMINATED PUSHBUTTON NKK Switches |
1,441 |
|
Datasheet |
KP | - | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
KP0215ANBKG036E-3FJBMINIATURE ILLUMINATED PUSHBUTTON NKK Switches |
3,378 |
|
Datasheet |
KP | - | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Yellow | 3.2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
