Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

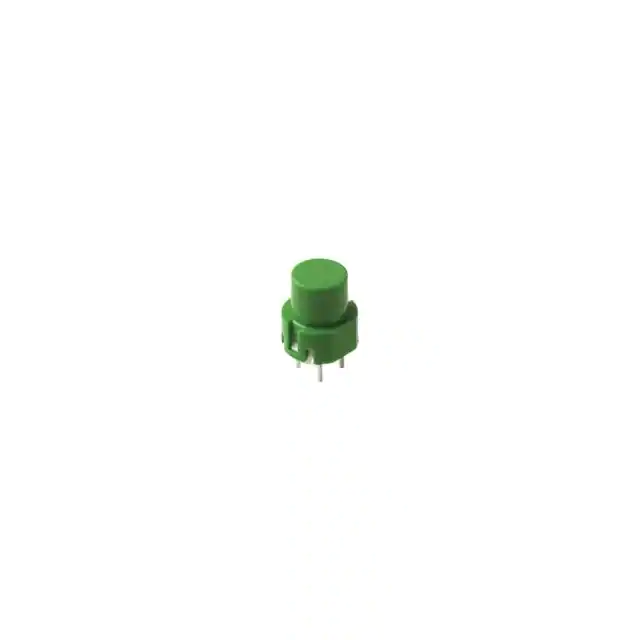

D6RLGNF1 LFSTOP ACTUATED KEYSWITCH ILLUMINAT C&K |
3,550 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | White | LED, Green | - | PC Pin | - | - | - | -20°C ~ 60°C |
|
D6RLRDF1 LFSTOP ACTUATED KEYSWITCH ILLUMINAT C&K |
2,619 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | White | LED, Red | - | PC Pin | - | - | - | -20°C ~ 60°C |
|
PS-2214-L NS PASWITCH PUSHBUTTON DPDT 0.1A 30V C&K |
989 |
|
Datasheet |
PS, COMAX | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Natural | - | - | PC Pin | - | - | - | - |
|
PN12SJNA03QESWITCH PUSH SPDT 0.2A 30V C&K |
4,033 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PN12SHNA03QESWITCH PUSH SPDT 0.2A 30V C&K |
327 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PN21SDSA03QESWITCH PUSH DPDT 0.2A 30V C&K |
1,210 |
|
Datasheet |
PN | Bag | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PN21SJNA03QESWITCH PUSH DPDT 0.2A 30V C&K |
586 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
|
PN22SJNA03QESWITCH PUSH DPDT 0.2A 30V C&K |
1,189 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
F2UOASWITCH PUSH DPDT 0.5A 125V C&K |
1,565 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
PVA1 OA H1 3.5N V2SWITCH PUSH DPST-NO 0.1A 32V C&K |
1,146 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
