Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLP1600RD6SA6MOMENTARY, ROUND, IP65, ILLUMINA C&K |
181 |
|
Datasheet |
PLP16 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC), 1A (DC) | 250 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|

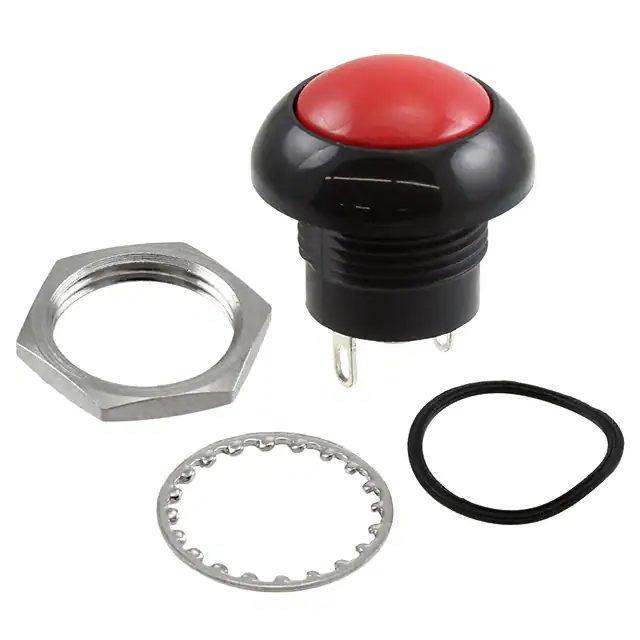

PNP8S3D2Y03QESWITCH PUSHBUTTON SPST-NO 5A 32V C&K |
108 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
PNP8S2D2C03QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
148 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

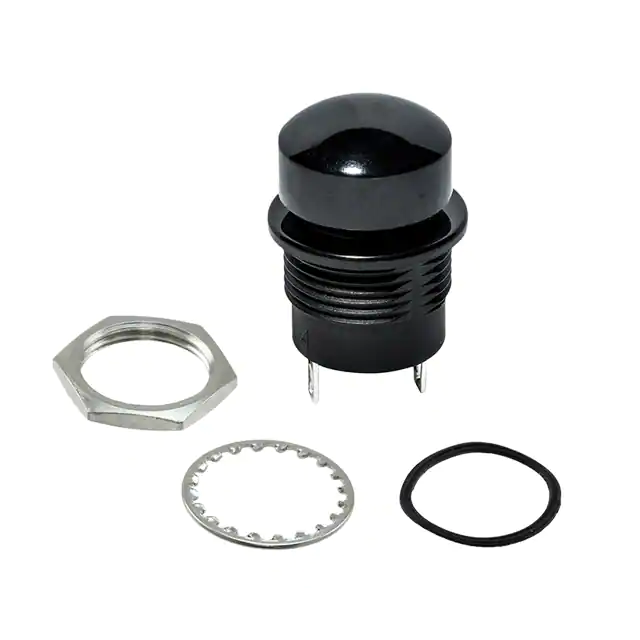

PNP8S2T2Y03QESWITCH PUSHBUTTON SPST-NO 5A 32V C&K |
142 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
ATP16DL5306B4SA04GSWITCH ANTIVANDAL 16MM DOME RING C&K |
386 |
|
Datasheet |
ATP16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | Power Symbol | Silver | LED, Red | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
ATP16DL1000B4SA04GSWITCH ANTIVANDAL 16MM DOME RING C&K |
1,429 |
|
Datasheet |
ATP16 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
ATP16SL1612M4SA04GSWITCH ANTIVANDAL 16MM STD RING C&K |
385 |
|
Datasheet |
ATP16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
ATP19SL3624B0DA03QSWITCH ANTI-VANDAL 19MM SEALED S C&K |
334 |
|
Datasheet |
ATP19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
NP8S3D203QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
106 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
NP8S3T203QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
459 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
