Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLP1624TA3SA6MOMENTARY, RECTANGULAR, IP65, IL C&K |
173 |
|
Datasheet |
PLP16 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 1A (DC) | 250 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 24 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
ZF12 FG BK 2U OASWITCH PUSH DPDT 0.5A 125V C&K |
111 |
|
Datasheet |
F | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin, Solder Lug | - | - | Circular - 12.00mm Dia | -40°C ~ 70°C |
|
ATPS19SL5612M4SA04GR+PO, GRE, 12V, DD SHA, SPST, MO C&K |
110 |
|
Datasheet |
ATPS19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 70°C |
|
ATPS22SL0000M0SA04GSWITCH ANTIVANDAL W/O LED, 0V, R C&K |
131 |
|
Datasheet |
ATPS22 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 70°C |
|
MD S SG LFSSWITCH PUSH SPST-NO 0.1A 100V C&K |
580 |
|
Datasheet |
MD | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 100 V | 100 V | Round, Button, Rubber | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
|
MDP S SG LFSSWITCH PUSH SPST-NO 0.1A 100V C&K |
721 |
|
Datasheet |
MDP | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 100 V | 100 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|

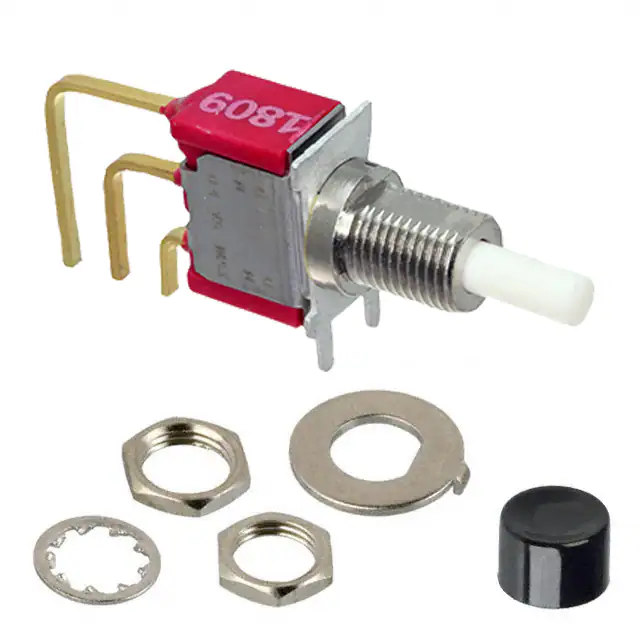

8161SHAV2BE2SWITCH PUSH SPDT 0.4VA 20V C&K |
176 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
EP12FPD1ABESWITCH PUSH SPDT 0.4VA 20V C&K |
262 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
8531MAVBE2SWITCH PUSH SPST-NO 0.4VA 20V C&K |
181 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
TP11SH8V3BESWITCH PUSH SPST-NO 0.4VA 20V C&K |
110 |
|
Datasheet |
TP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
