Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Y16R24DL0FPK12GO BK 1.5 6/12N LL C&K |
730 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y16R24BL0FPK12GO BK 1.5 3.5/7N LL C&K |
458 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
K12PYE23.5NSWITCH PUSH SPST-NO 0.1A 30V C&K |
254 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Yellow | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
K12SD S 1.5 6N O LFTXK12SD S 1.5 6N O LFTX C&K |
706 |
|
Datasheet |
K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
Y97KT23B0FAFPLinear IC's C&K |
15,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LOCKOUT BLOCKER 10MMSWITCH PUSHBUTTON C&K |
2,499 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KBDBKN6AULFTSWITCH TACTILE C&K |
12,646 |
|
Datasheet |
KBD | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
D6C60 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V C&K |
1,402 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|

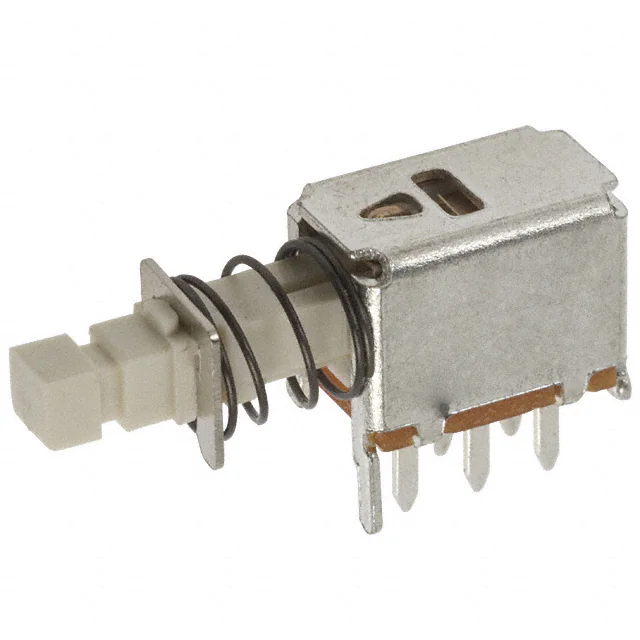

PN22LENA03QESWITCH PUSH DPDT 0.2A 30V C&K |
12,572 |
|
Datasheet |
PN | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PS-32C02-F NSSWITCH PUSH SPST-NOX3 10MA 5V C&K |
1,484 |
|
Datasheet |
PS, COMAX | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPST-NO x 3 | Off-Mom | 10mA (DC) | - | 5 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
