Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Y17P12341FPLinear IC's C&K |
2,525 |
|
Datasheet |
PVA | Tape & Reel (TR) | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
Y17P21441FPLinear IC's C&K |
1,797 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y17P11341FPLinear IC's C&K |
1,838 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y17P21142FPLinear IC's C&K |
2,542 |
|
Datasheet |
PVA | Tape & Reel (TR) | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
Y17P22122FPLinear IC's C&K |
1,176 |
|
Datasheet |
PVA | Tape & Reel (TR) | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
Y17P12142FPLinear IC's C&K |
1,754 |
|
Datasheet |
PVA | Tape & Reel (TR) | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
K5A2 4N AGSWITCH PUSH SPST-NO 0.1A 50V C&K |
1,009 |
|
Datasheet |
K5A2 | Tape & Reel (TR) | Obsolete | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Round, Button | No Marking | White | - | - | Gull Wing | - | - | - | -40°C ~ 85°C |
|

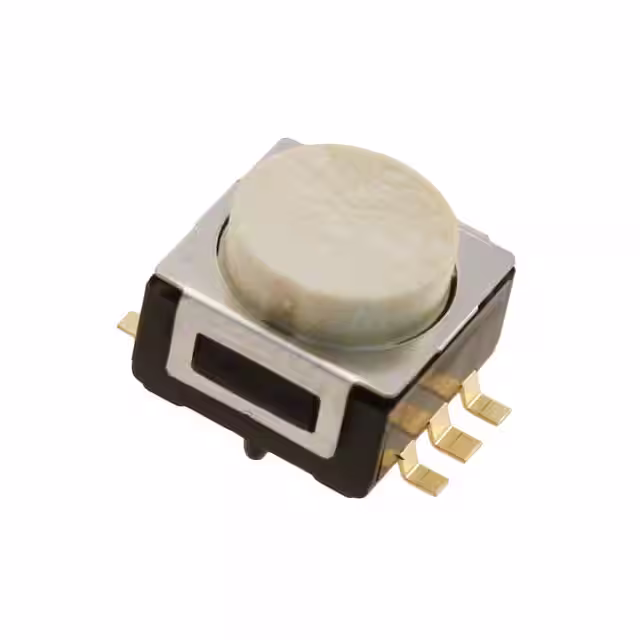

K5G 4/6.5N AGSWITCH PUSH SPST-NO 0.1A 50V C&K |
2,467 |
|
Datasheet |
K5G | Tape & Reel (TR) | Obsolete | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Tactile Feedback | - | -40°C ~ 85°C |
|
|
REL BAR F3X15 NICKEL PLTDSWITCH PUSHBUTTON C&K |
4,228 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

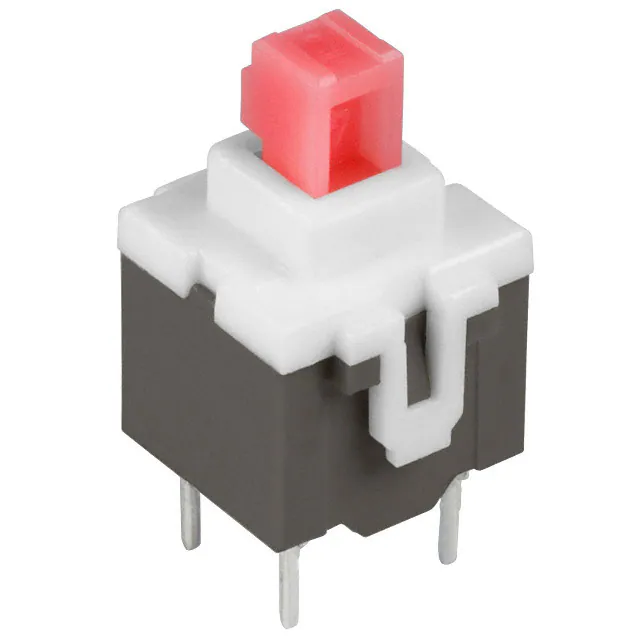

PVA1 EE H4 1.2N V2SWITCH PUSH DPST 0.1A 32V C&K |
4,357 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST | Off-On | 100mA (DC) | - | 32 V | Square, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
