Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-20D323SWITCH PUSH SPST-NO 0.1A 14V Panasonic Electronic Components |
471 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | - |
|
ESB-30B102SWITCH PUSH DPDT 0.2A 14V Panasonic Electronic Components |
2,120 |
|
Datasheet |
ESB30 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | - |
|
ESE-20C323SWITCH PUSH SPST-NO 0.1A 14V Panasonic Electronic Components |
1,148 |
|
Datasheet |
ESE20C | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Square, Button | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | - |
|
ESE-20D343SWITCH PUSH SPST-NO 0.1A 14V Panasonic Electronic Components |
1,049 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|
ESB-33134SWITCH PUSH DPDT 0.2A 14V Panasonic Electronic Components |
1,209 |
|
Datasheet |
ESB33 | Tray | Active | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | - |
|
|
ESB-30B332SWITCH PUSH DPDT 0.2A 14V Panasonic Electronic Components |
2,926 |
|
Datasheet |
ESB30 | Tray | Active | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | - |
|
ESE-20D341SWITCH PUSH SPST-NO 0.1A 14V Panasonic Electronic Components |
1,207 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|

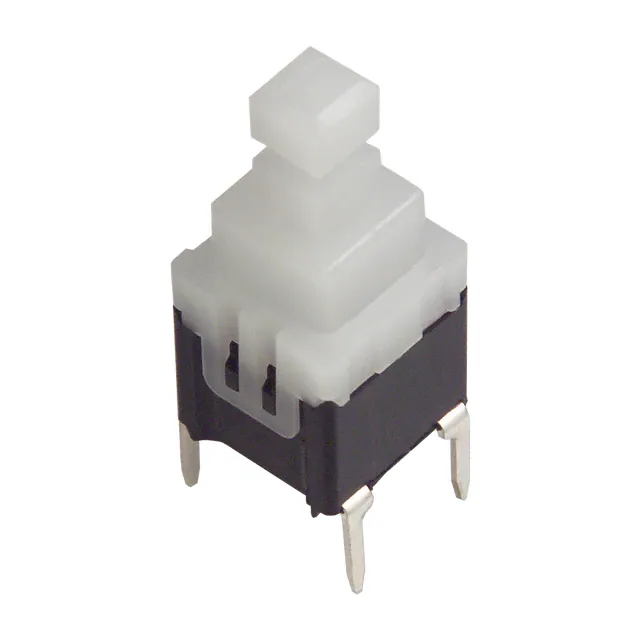

ESE-20C423SWITCH PUSH SPST-NO 0.1A 14V Panasonic Electronic Components |
4,086 |
|
Datasheet |
ESE20C | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | - |
|

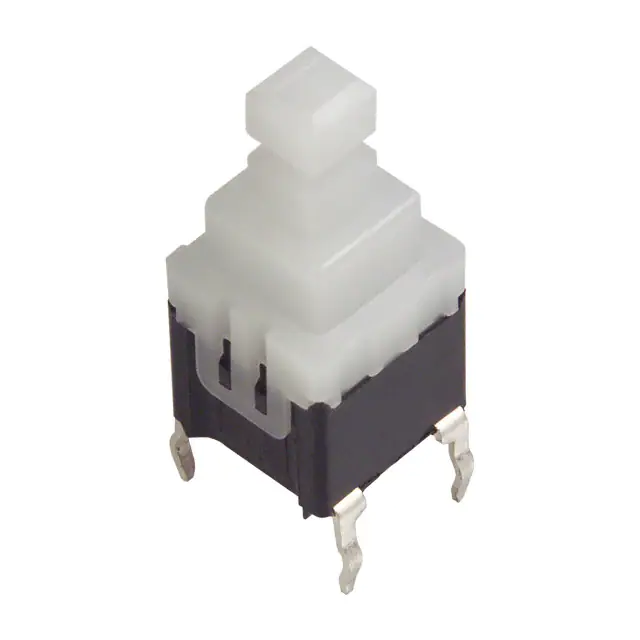

ESE-20D421SWITCH PUSH SPST-NO 0.1A 14V Panasonic Electronic Components |
1,290 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | - |
|

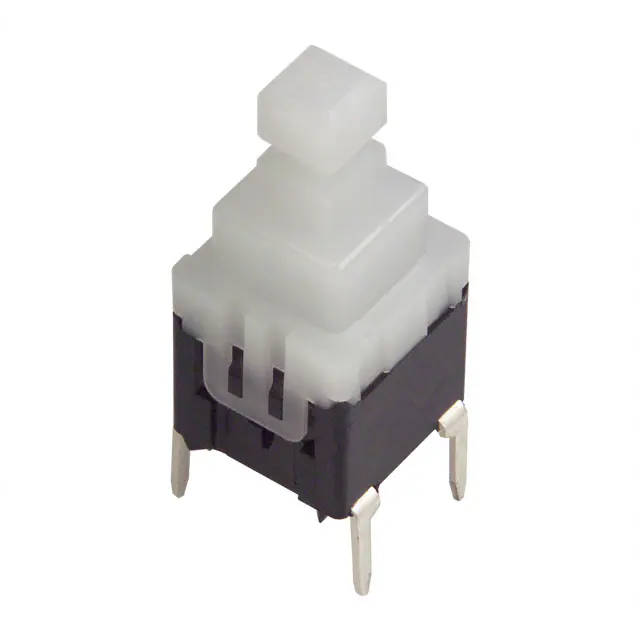

ESE-20D423SWITCH PUSH SPST-NO 0.1A 14V Panasonic Electronic Components |
3,088 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | - |
