Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2023TJW01-GA-4A-CFMINIATURE ROCKER/MULTI-FUNCTION NKK Switches |
2,967 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Green/Red | 2.2, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-FA-4A-ECSWITCH ROCKER DPDT 6A 125V NKK Switches |
4,837 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red/Yellow | 1.9, 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2112NFW13SWITCH ROCKER SPDT 6A 125V NKK Switches |
2,860 |
|
Datasheet |
M2100 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 55°C | CSA, UL |
|
|
M2112JEW13SWITCH ROCKER SPDT 6A 125V NKK Switches |
1,330 |
|
Datasheet |
M2100 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C | CSA, UL |
|
|
M2112JEW01-ASWITCH ROCKER SPDT 6A 125V NKK Switches |
2,540 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Yellow | 2 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
M2112JEW01-GSWITCH ROCKER SPDT 6A 125V NKK Switches |
4,954 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Yellow | 2 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|

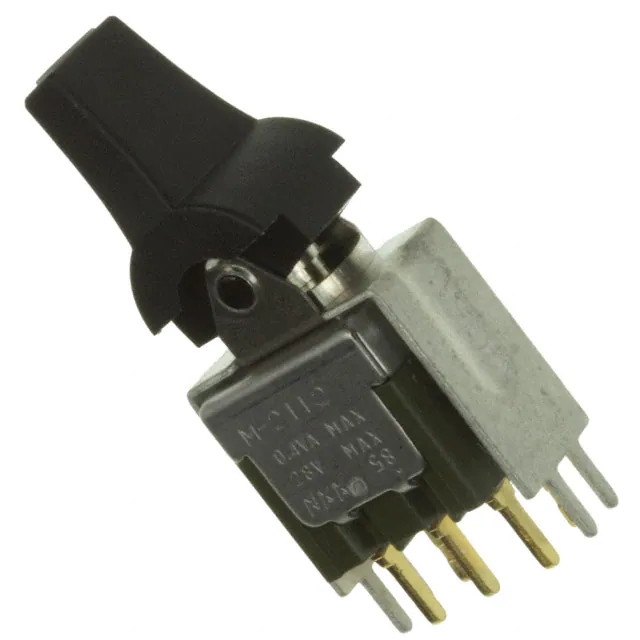

M2112PCFG13SWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,506 |
|
Datasheet |
M2100 | Box | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Black | No Marking | LED, Green/Red | 2.0, 2.2 VDC | PC Pin | - | - | - | -25°C ~ 70°C | CSA, UL |
|
|
M2023TJG01-FB-2A-FSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
1,493 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) - Illuminated | White | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2112JCFW01SWITCH ROCKER SPDT 6A 125V NKK Switches |
2,359 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Green/Red | 2.0, 2.2 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
M2112PFW01-ASWITCH ROCKER SPDT 6A 125V NKK Switches |
4,057 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
