Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2042TXW41SWITCH ROCKER 4PDT 6A 125V NKK Switches |
2,323 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2048TYW01-HASWITCH ROCKER 4PDT 6A 125V NKK Switches |
1,732 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2048TYW01-JASWITCH ROCKER 4PDT 6A 125V NKK Switches |
1,487 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
LW3129/CULSWITCH ROCKER DPDT 10A 125V NKK Switches |
4,269 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
M2042TNG03-DASWITCH ROCKER 4PDT 0.4VA 28V NKK Switches |
1,242 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
WR11AL/CULSWITCH ROCKER SPST 15A 125V NKK Switches |
4,962 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

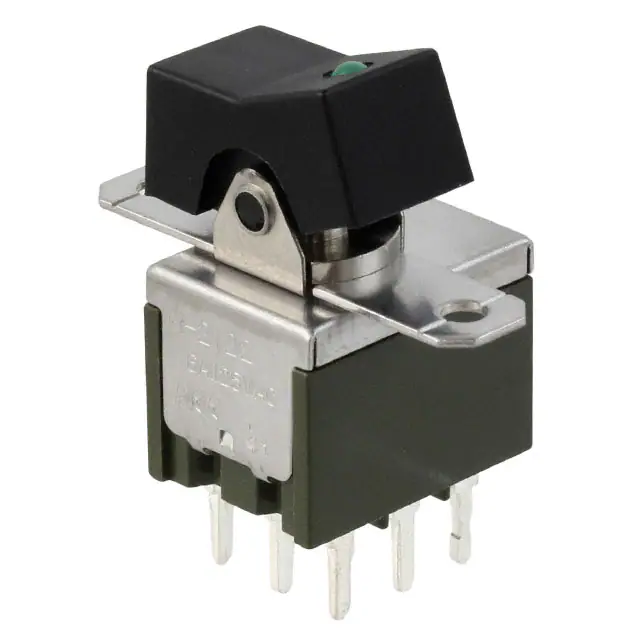

M2122RFW03SWITCH ROCKER DPDT 6A 125V NKK Switches |
1,151 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | PC Pin | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 55°C | CSA, UL |
|
|
M2042TXW41-DASWITCH ROCKER 4PDT 6A 125V NKK Switches |
2,481 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2042TXW41-DCSWITCH ROCKER 4PDT 6A 125V NKK Switches |
4,439 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2042TXW41-EGSWITCH ROCKER 4PDT 6A 125V NKK Switches |
2,489 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Blue | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
