Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWMW22RAA/UCVSWITCH ROCKER DPDT 10A 125V NKK Switches |
4,370 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|
|
JWMW22RCA/UCVSWITCH ROCKER DPDT 10A 125V NKK Switches |
2,794 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|
M2023TJW01-FA-1ASWITCH ROCKER DPDT 6A 125V NKK Switches |
1,543 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
M2028TJW01SWITCH ROCKER DPDT 6A 125V NKK Switches |
1,296 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
MN15TNG01FLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
2,709 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN13TNG01FLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
1,722 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | - | - | - |
|

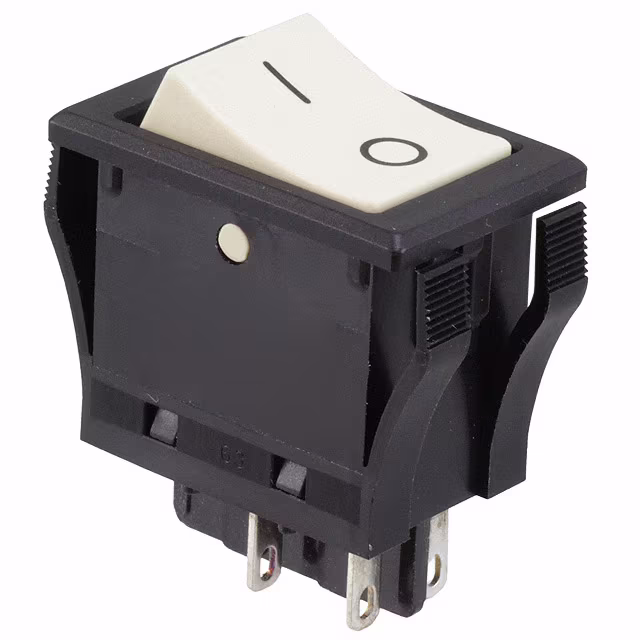

JWM21RB2A/UCVSWITCH ROCKER DPST 10A 125V NKK Switches |
4,331 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Ivory | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
MN12TZG13SWITCH ROCKER MINI PC MOUNT NKK Switches |
2,277 |
|
- |
M | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MN12TJW01SWITCH ROCKER MINIATURE SNAP NKK Switches |
3,823 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | UL |
|
M2025TJW01-FB-1ASWITCH ROCKER DPDT 6A 125V NKK Switches |
1,992 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
