Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN18TXW13-DHBRACKET PC MOUNT MINIATURE ROCKE NKK Switches |
1,725 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
JWM22RBBSWITCH ROCKER DPDT 10A 125V NKK Switches |
3,725 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Ivory | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
MN15TZG13-JCBRACKET PC MOUNT MINIATURE ROCKE NKK Switches |
1,287 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

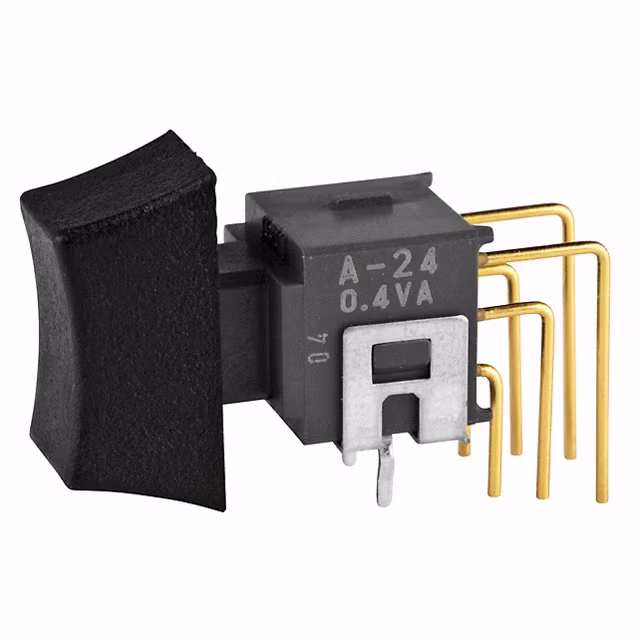

A24K1V-EASWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
2,008 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
MN24TNW01SWITCH ROCKER MINI FLAT FRAME NKK Switches |
3,318 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | UL |
|
|
MN23TNW01FLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
3,413 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JWM22RHA/UCVHIGH INRUSH 10 AMP ROCKER NKK Switches |
2,113 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Gray | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
JWM22RHAHIGH INRUSH 10 AMP ROCKER NKK Switches |
3,327 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Gray | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
MN15TJW03SNAP-IN MOUNT MINIATURE ROCKER NKK Switches |
2,289 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN12TJW01-GB-1ASWITCH ROCKER MINIATURE SNAP NKK Switches |
1,343 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | UL |
