Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN29TXG13SWITCH ROCKER NKK Switches |
1,866 |
|
- |
M | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MN24TYW01-HBFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
3,500 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN24TYW01-JAFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
1,481 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN25TYW01-JAFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
3,903 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN25TYW01-JCFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
2,076 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN24TYW01-JBFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
1,670 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN23TYW01-JAFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
1,121 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN18TNW03FLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
3,598 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | - | - | - |
|

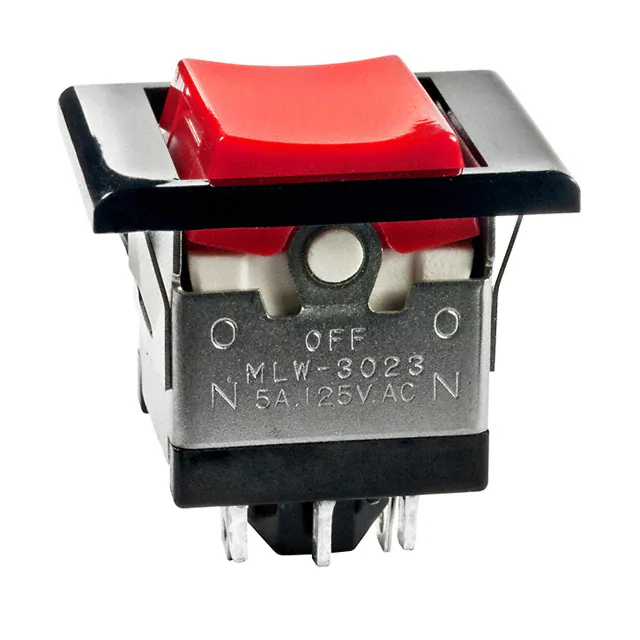

MLW3023-12-RC-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
4,393 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MN19TYG01-JAFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
2,781 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
