Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2028TJW01-FA-1ASWITCH ROCKER DPDT 6A 125V NKK Switches |
356 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
M2013TXG13-DCSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
296 |
|
Datasheet |
M | Box | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2013TXG13-FASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
296 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2013TXG13-GASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
2,729 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2018TYW01SWITCH ROCKER SPDT 6A 125V NKK Switches |
3,353 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2013TXG45-DCSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
482 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

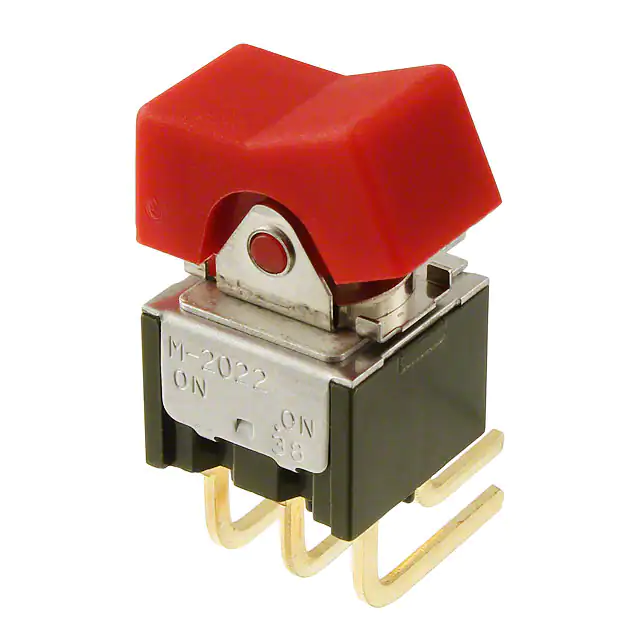

M2022TXG30-DCSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
150 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2042TNW01-DASWITCH ROCKER 4PDT 6A 125V NKK Switches |
3,578 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TNW01/CULSWITCH ROCKER DPDT 6A 125V NKK Switches |
430 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
JWM21BA2A/UCV-ASWITCH ROCKER DPST 10A 125V NKK Switches |
2,425 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
