Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2T19TZG23-JASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
1,482 |
|
- |
M2 | Tray | Obsolete | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2018TJW01-FB-2A-CSWITCH ROCKER SPDT 6A 125V NKK Switches |
1,050 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | White | No Marking | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2T12TXG13-DASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,806 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

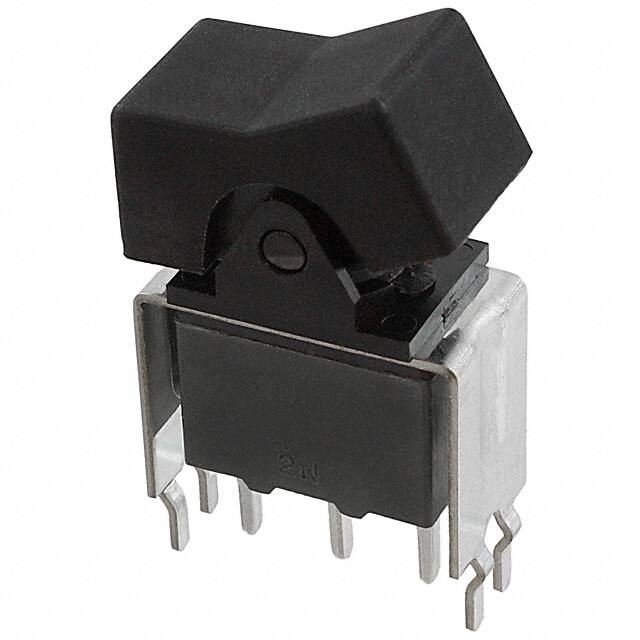

M2T12TXW13-DASWITCH ROCKER SPDT 6A 125V NKK Switches |
2,881 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
MLW3018-00-RA-1ASWITCH ROCKER SPDT 5A 125V NKK Switches |
1,988 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
M2012TJW01-FC-2A-CSWITCH ROCKER SPDT 6A 125V NKK Switches |
4,296 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Red | No Marking | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TJW01-FASWITCH ROCKER SPDT 6A 125V NKK Switches |
2,517 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|

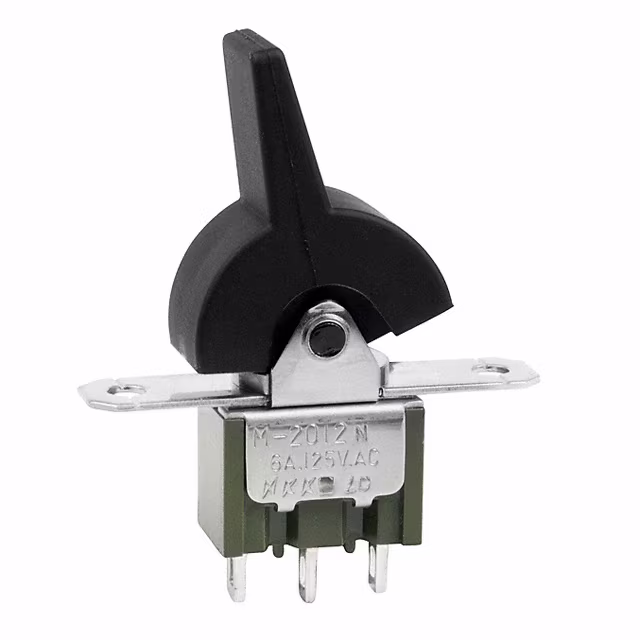

M2012TNW01-EASWITCH ROCKER SPDT 6A 125V NKK Switches |
2,699 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
MLW3028-00-PA-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
4,945 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3028-00-PB-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
3,629 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
