Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW3833/CULSWITCH ROCKER 3PDT 30A 125V NKK Switches |
3,836 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
SW3832/UCSWITCH ROCKER 3PDT 30A 125V NKK Switches |
4,705 |
|
Datasheet |
SW | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|

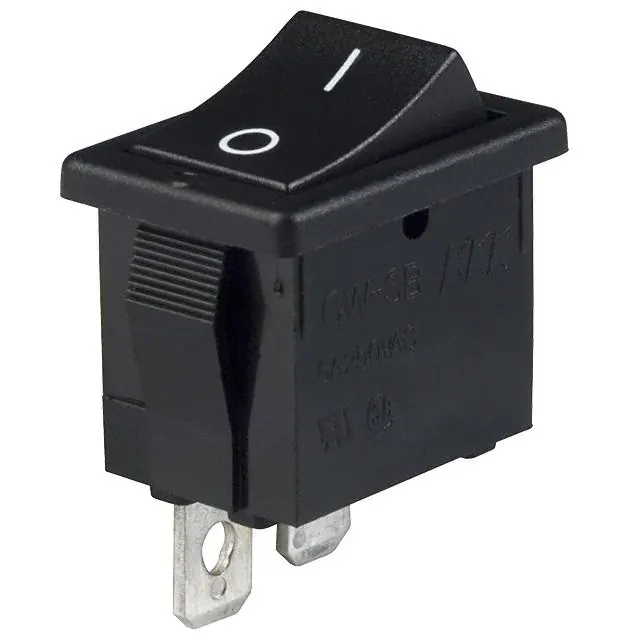

CWSB11AA2FSWITCH ROCKER SPST 6A 250V NKK Switches |
1,867 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

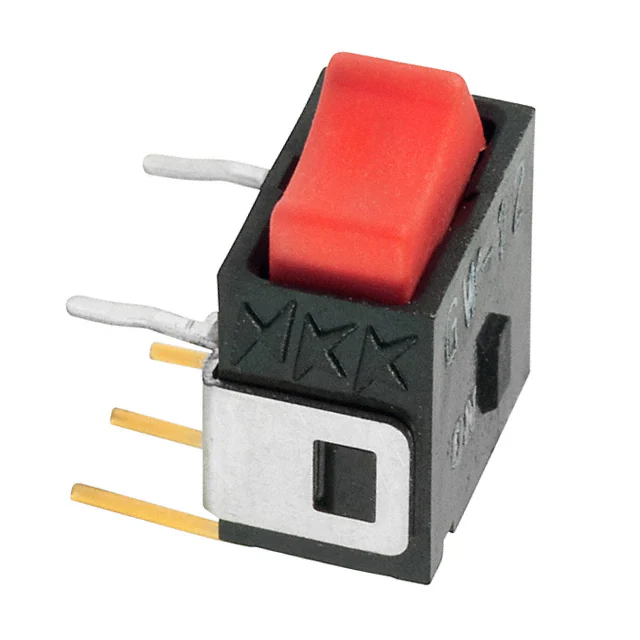

GW12RCHSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
2,444 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

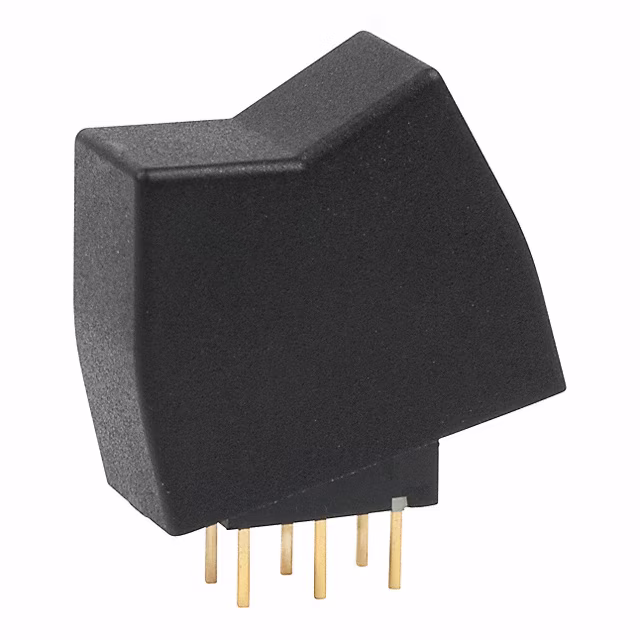

G22KP-YASWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
2,554 |
|
Datasheet |
G | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
JWMW11RA2A/CUL-WLSWITCH ROCKER SPST 10A 125V NKK Switches |
4,188 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O - | - | - | Wire Leads | Dust Proof | - | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|

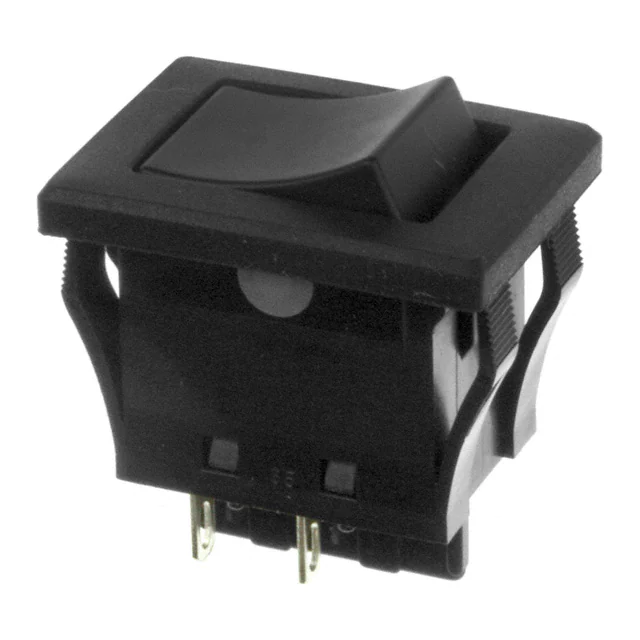

JWMW22RAASWITCH ROCKER DPDT 10A 125V NKK Switches |
4,740 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|
WR11BTSWITCH ROCKER SPST 15A 125V NKK Switches |
1,550 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
SW3821DSWITCH ROCKER DPST 30A 30V NKK Switches |
2,697 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPST | On-Off | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|

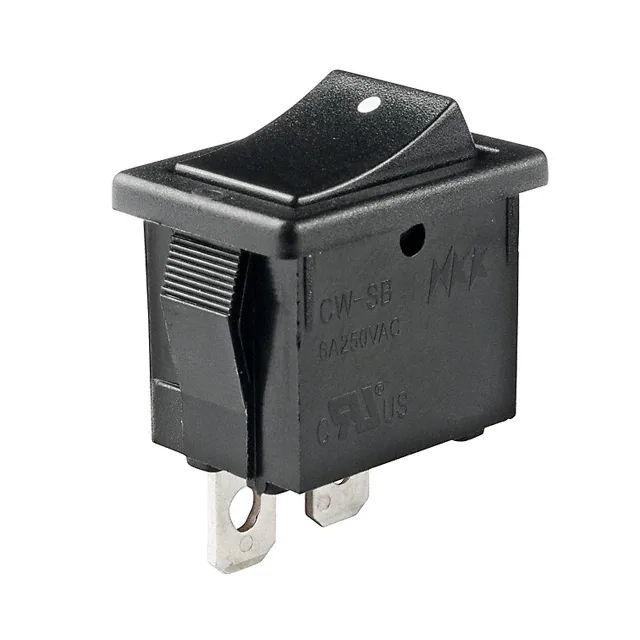

CWSB11AA3FSWITCH ROCKER SPST 6A 250V NKK Switches |
4,238 |
|
Datasheet |
CWSB | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
