Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012TZW13SWITCH ROCKER SPDT 6A 125V NKK Switches |
2,732 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

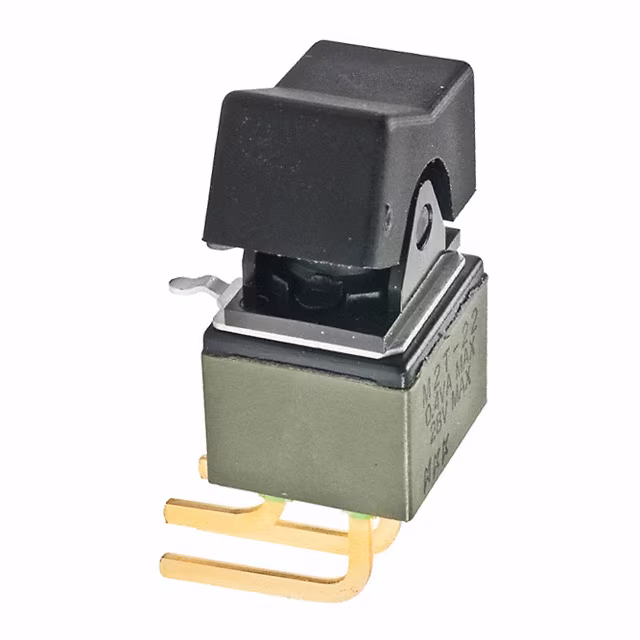

M2T22TXG30-DASWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
3,183 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2028TXW13SWITCH ROCKER DPDT 6A 125V NKK Switches |
4,396 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2018TNW01-EASWITCH ROCKER SPDT 6A 125V NKK Switches |
4,187 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
G28KPSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
4,788 |
|
Datasheet |
G | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
M2012TNW01/UC-DASWITCH ROCKER SPDT 6A 125V NKK Switches |
2,513 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TZW23/U-JBSWITCH ROCKER SPDT 6A 125V NKK Switches |
3,347 |
|
Datasheet |
M | Box | Obsolete | Through Hole | SPDT | On-On | 6A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TZW23/UC-JASWITCH ROCKER SPDT 6A 125V NKK Switches |
4,511 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TZW23/UC-JBSWITCH ROCKER SPDT 6A 125V NKK Switches |
3,512 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TZW23/C-JBMINIATURE ROCKER/MULTI-FUNCTION NKK Switches |
3,028 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
