Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A29KP-CASWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
1,641 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

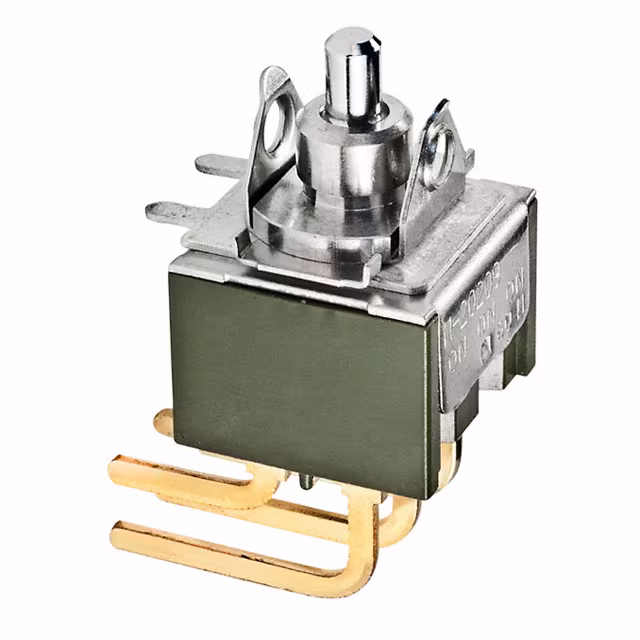

M2027TXG30SWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
1,374 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
M2012TYG01-JASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
4,951 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TYG01-JCSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,631 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2012TYG01-HHSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
2,304 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2012TXG45SWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
4,041 |
|
Datasheet |
M | Box | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2015TYW01-JASWITCH ROCKER SPDT 6A 125V NKK Switches |
4,008 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TYW01-HHSWITCH ROCKER SPDT 6A 125V NKK Switches |
2,012 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2027TNW01SWITCH ROCKER SP3T 6A 125V NKK Switches |
2,091 |
|
- |
M | Bulk | Obsolete | Panel Mount, Flange | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
M2015TXG13SWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,628 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
