Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U23J60ZQI2SWITCH ROCKER DPDT 5A 120V C&K |
2,537 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Potted | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7401J1CBE2SWITCH ROCKER 4PDT 0.4VA 20V C&K |
3,831 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
U15J19ZQE22SWITCH ROCKER SPDT 5A 120V C&K |
2,939 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 38.74mm x 16.46mm | -30°C ~ 85°C | cULus |
|
7301J11CQE22SWITCH ROCKER 3PDT 5A 120V C&K |
3,327 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
E213J60V8QE2SWITCH ROCKER SP3T 7.5A 125V C&K |
3,650 |
|
Datasheet |
E | Bulk | Active | Through Hole | SP3T | On-On-Mom | 7.5A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | cULus |
|
9201J1ZQE1SWITCH ROCKER DPDT 6A 125V C&K |
4,745 |
|
Datasheet |
9000 | Tray | Active | Panel Mount, Flange | DPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
7107J91CGE22SWITCH ROCKER SPDT 5A 120V C&K |
2,109 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

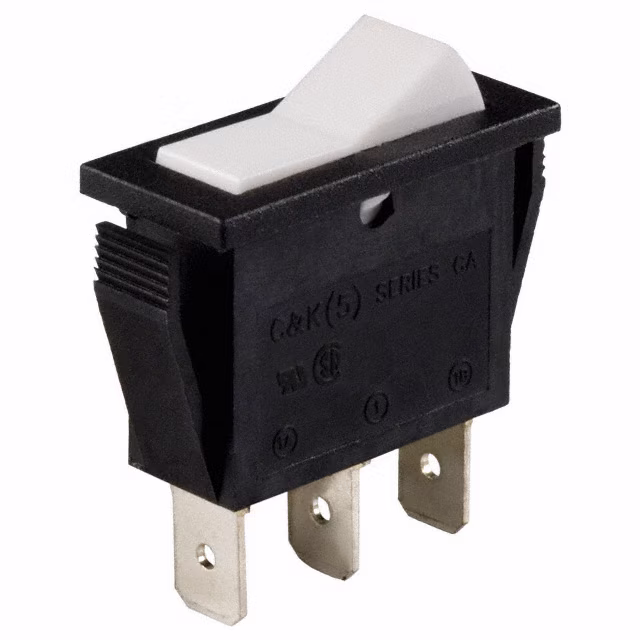

CA01J11207QSWITCH ROCKER SPDT 15A 125V C&K |
4,255 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|
ET02J6V3ME2SWITCH ROCKER SPST 2A 120V C&K |
1,851 |
|
Datasheet |
ET | Tray | Obsolete | Through Hole | SPST | On-Off | 2A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
7205J62ZGE22SWITCH ROCKER DPDT 5A 120V C&K |
3,961 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle - Illuminated | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
