Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101J3ZBE2SWITCH ROCKER SPDT 0.4VA 20V C&K |
4,109 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
7101J50V6BE1SWITCH ROCKER SPDT 0.4VA 20V C&K |
1,075 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

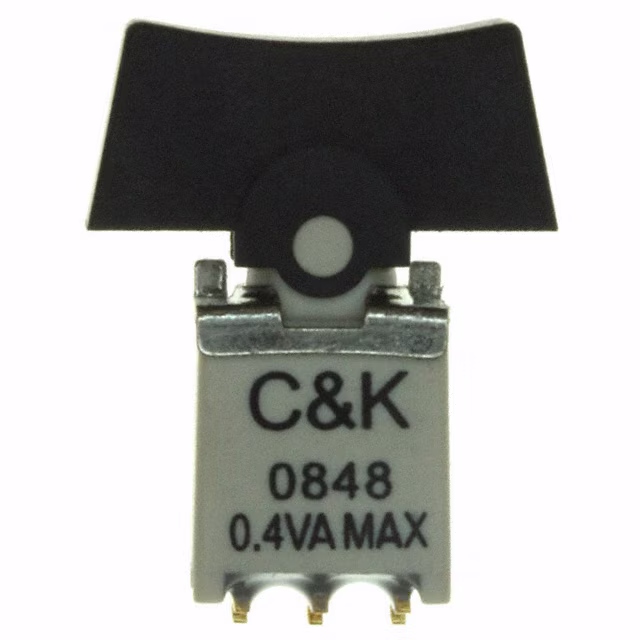

ET05J6SA1BE2SWITCH ROCKER SPDT 0.4VA 20V C&K |
1,349 |
|
Datasheet |
ET | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | SMD (SMT) Tab | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
7101J1V6QE2SWITCH ROCKER SPDT 5A 120V C&K |
1,360 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
DM24J72B205Q6SWITCH ROCKER DPST 3A 125V C&K |
4,654 |
|
Datasheet |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 3A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Guard | Rectangular - 27.13mm x 19.20mm | -20°C ~ 65°C | cULus |
|
|
7101J1Z3GE2SWITCH ROCKER SPDT 5A 120V C&K |
4,432 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
7105J91ZQE22SWITCH ROCKER SPDT 5A 120V C&K |
1,143 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
E101J3AV2QE2SWITCH ROCKER SPDT 125V C&K |
4,930 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | cULus |
|
E105J1ZQE2SWITCH ROCKER SPDT 7.5A 125V C&K |
1,972 |
|
Datasheet |
E | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
E101J3AV2BE2SWITCH ROCKER SPDT 20V C&K |
3,315 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | cULus |
