Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS1NSWITCH ROTARY 2-11POS 30A 125V NKK Switches |
2,572 |
|
Datasheet |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Silver Alloy | - | Panel Mount | Screw Terminal | - | 46.50mm |
|
MRY106G-ASWITCH ROTARY 2-6POS 0.4VA 28V NKK Switches |
1,914 |
|
Datasheet |
MR | Box | Active | 2 ~ 6 | Adjustable | 1 | 1 | SP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 13.00mm | 60° | Copper | Gold | Panel Mount | Solder Turret | Sealed - Flux Protection | 24.90mm |
|

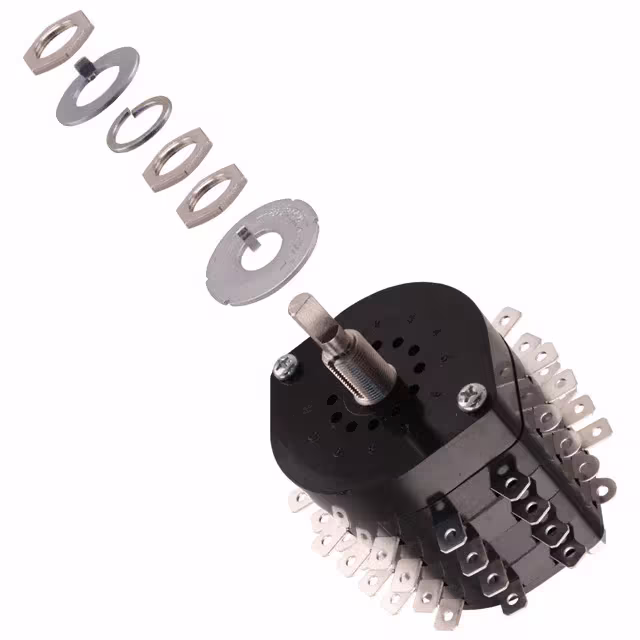

HS16-4NSWITCH ROTARY 2-11POS 12A 125V NKK Switches |
3,054 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 61.50mm |
|

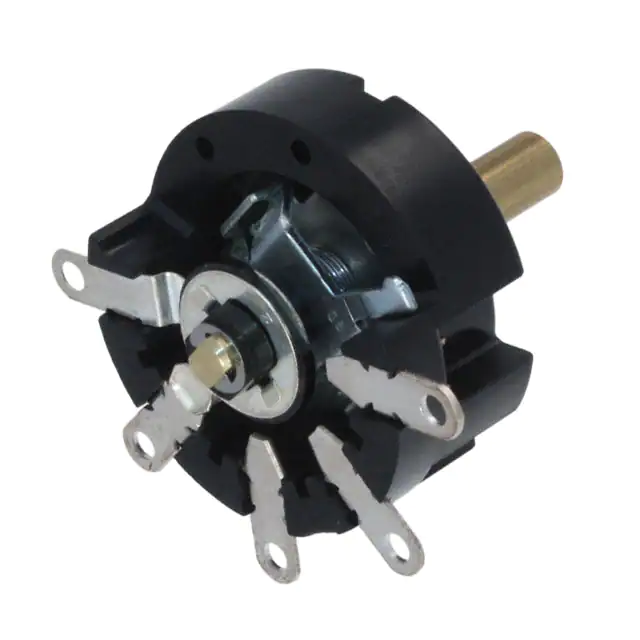

HS13ZSWITCH ROTARY 4POS 6A 125V NKK Switches |
3,190 |
|
Datasheet |
HS | Tray | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|

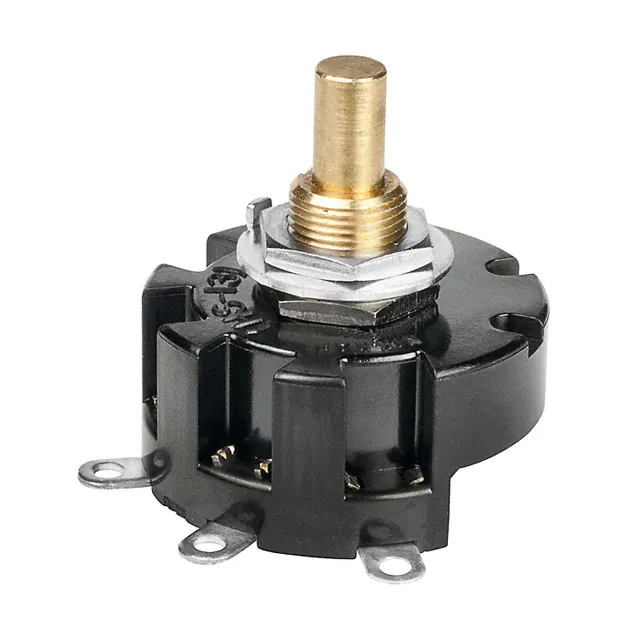

HS13XSWITCH ROTARY 2POS 6A 125V NKK Switches |
3,266 |
|
Datasheet |
HS | Box | Obsolete | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|
HS13YSWITCH ROTARY 3POS 6A 125V NKK Switches |
1,760 |
|
Datasheet |
HS | Box | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|

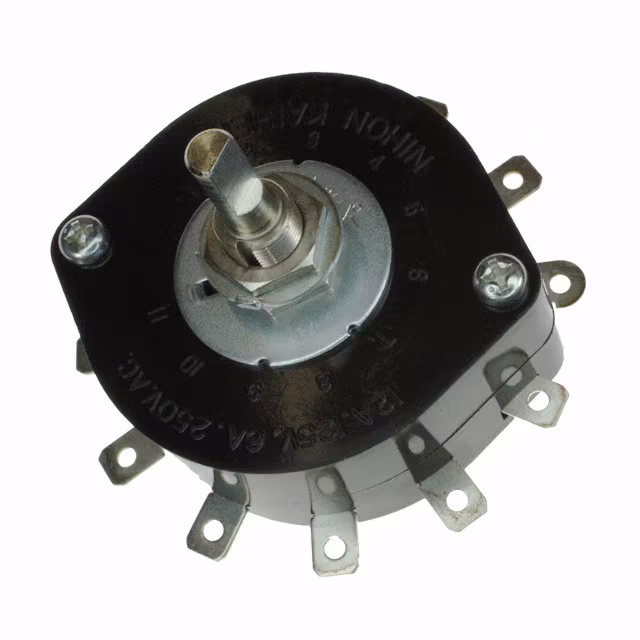

HS16-1SNSWITCH ROTARY 2-11POS 12A 125V NKK Switches |
2,002 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 31.50mm |
|

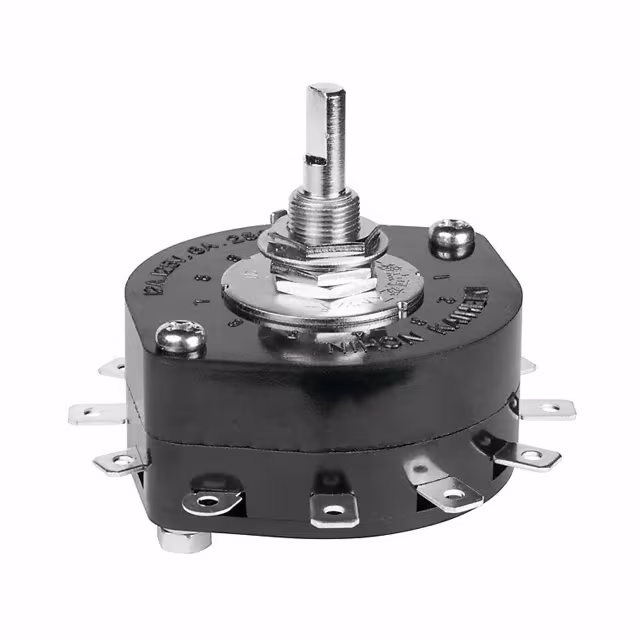

HS16-1NSWITCH ROTARY 2-11POS 12A 125V NKK Switches |
3,731 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 31.50mm |
|

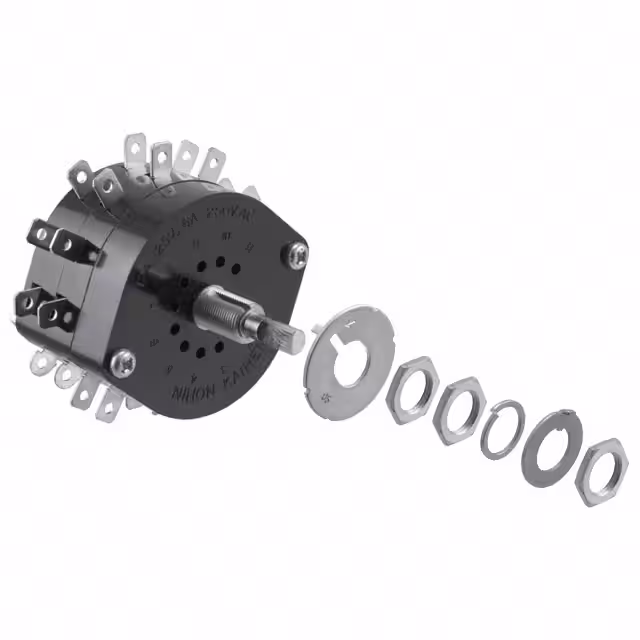

HS16-2NSWITCH ROTARY 2-11POS 12A 125V NKK Switches |
3,648 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 41.50mm |
|
TS3NSWITCH ROTARY 2-11POS 6A 125V NKK Switches |
2,050 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 46.00mm |
