Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
111-5SWITCH ROTARY 5POS 15A 125V Ohmite |
2,718 |
|
Datasheet |
111 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
111-8SWITCH ROTARY 8POS 15A 125V Ohmite |
2,656 |
|
Datasheet |
111 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
711-3ESWITCH ROTARY 3POS 7A 125V Ohmite |
3,995 |
|
Datasheet |
711 | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 7A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | 20.60mm |
|
|
111-6SWITCH ROTARY 6POS 15A 125V Ohmite |
4,819 |
|
Datasheet |
111 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
111-3ESWITCH ROTARY 3POS 15A 125V Ohmite |
2,822 |
|
Datasheet |
111 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|

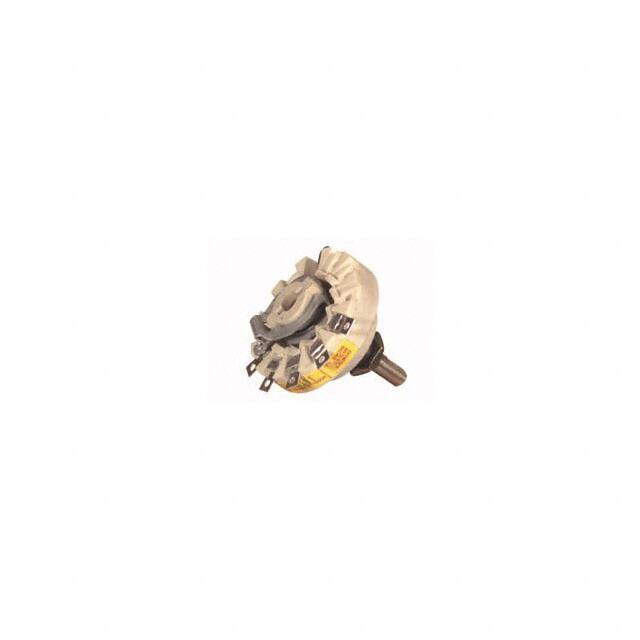

111-10SWITCH ROTARY 10POS 15A 125V Ohmite |
1,958 |
|
Datasheet |
111 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
111-6ESWITCH ROTARY 6POS 15A 125V Ohmite |
2,235 |
|
Datasheet |
111 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
711-5ESWITCH ROTARY 5POS 7A 125V Ohmite |
1,509 |
|
Datasheet |
711 | Bulk | Obsolete | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 7A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | 20.60mm |
|
|
111-7ESWITCH ROTARY 7POS 15A 125V Ohmite |
4,177 |
|
Datasheet |
111 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
111-9ESWITCH ROTARY 9POS 15A 125V Ohmite |
2,632 |
|
Datasheet |
111 | Box | Active | 9 | Fixed | 1 | 1 | SP9T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.58mm |
