Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB04L1NZGDSWITCH ROTARY 4POS 250MA 125V C&K |
4,868 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 14.86mm |
|
MA00L1NCGFSWITCH ROTARY 10POS 250MA 125V C&K |
1,160 |
|
Datasheet |

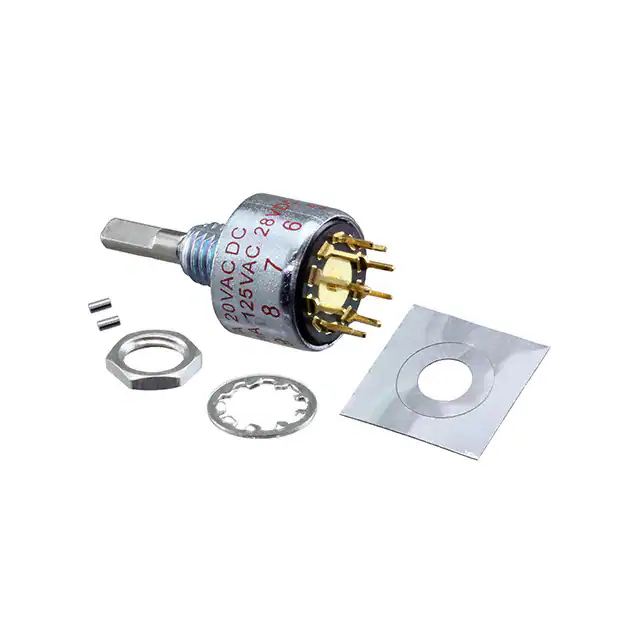

M | Tray | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
MB05L1NCQFSWITCH ROTARY 5POS 250MA 125V C&K |
2,196 |
|
Datasheet |
M | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
|
MA02L1NZGFSWITCH ROTARY 2POS 250MA 125V C&K |
2,502 |
|
Datasheet |
M | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
MA04L1NZGFSWITCH ROTARY 4POS 250MA 125V C&K |
4,920 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
MC12L1NZGFSWITCH ROTARY 12POS 250MA 125V C&K |
4,096 |
|
Datasheet |
M | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
MB04L2NZQFSWITCH ROTARY 4POS 250MA 125V C&K |
4,402 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
A20642MNZGSWITCH ROTARY 6POS 2.5A 125V C&K |
1,167 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Round (6mm Dia) | 42.00mm | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
|
MB03L1NZQDSWITCH ROTARY 3POS 250MA 125V C&K |
2,827 |
|
Datasheet |
M | Tray | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
|
MB05L1NZQDSWITCH ROTARY 5POS 250MA 125V C&K |
1,062 |
|
Datasheet |
M | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
