Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

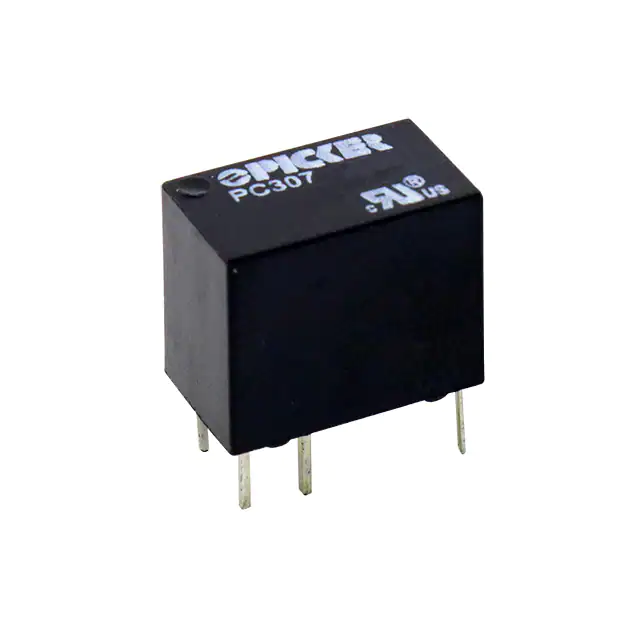

PC307-24G-XRELAY GEN PURPOSE SPDT 1A 24V Picker Components |
1,075 |
|
Datasheet |
PC307 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 6.25 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 19.2 VDC | 2.4 VDC | 5 ms | 5 ms | -30°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

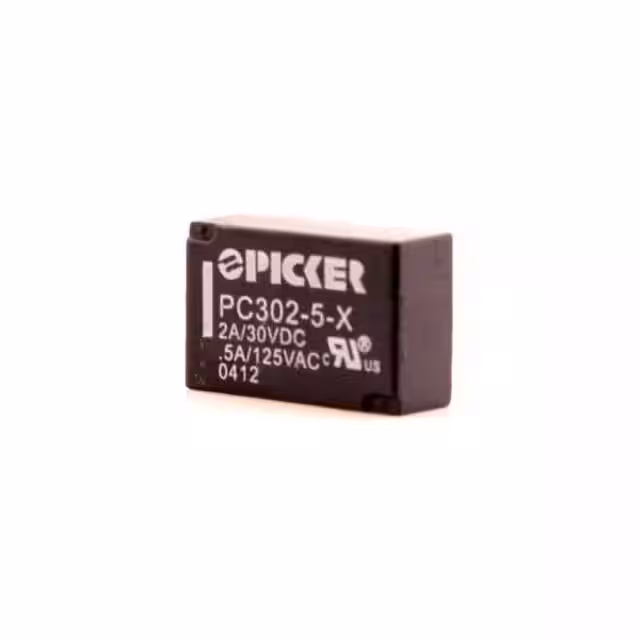

PC302-5-XRELAY GENERAL PURPOSE DPDT 2A 5V Picker Components |
4,767 |
|
Datasheet |
PC302 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
PC307-12G-XRELAY GEN PURPOSE SPDT 1A 12V Picker Components |
1,682 |
|
Datasheet |
PC307 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9.6 VDC | 1.2 VDC | 5 ms | 5 ms | -30°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
