Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

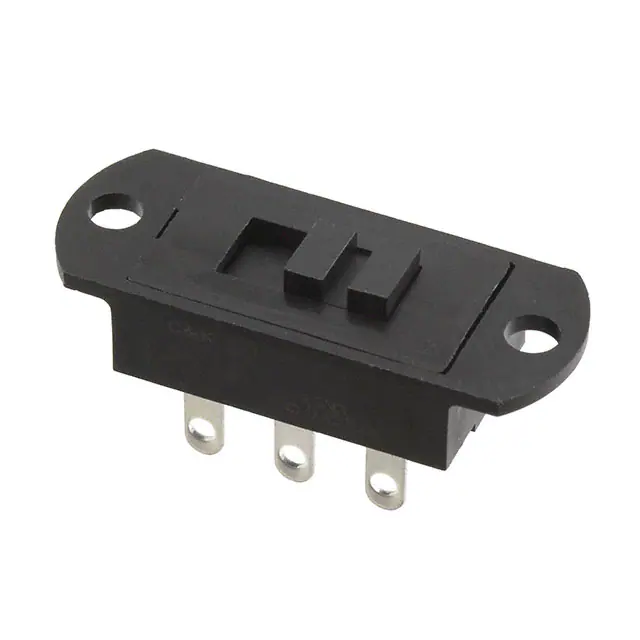

S202131SS03QSWITCH SLIDE DPDT 6A 125V C&K |
1,874 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 6A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Silver | Panel Mount | Solder Lug | No Marking |
|

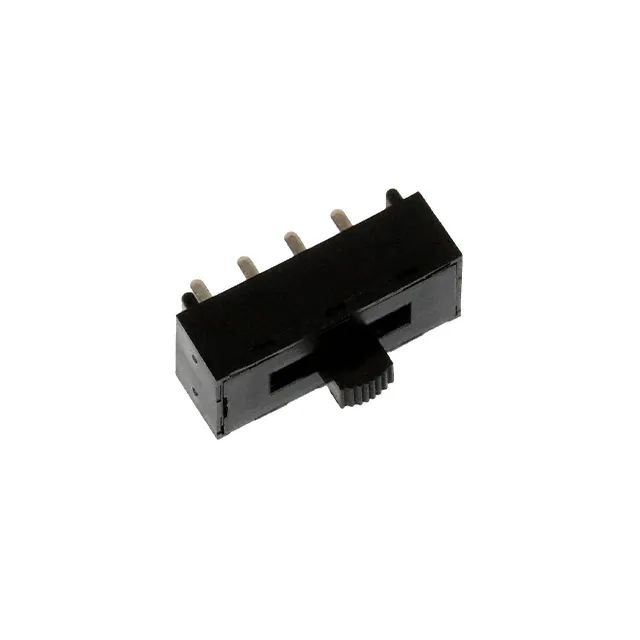

L123012MS02QSWITCH SLIDE SP3T 4A 125V C&K |
2,569 |
|
Datasheet |
L | Bulk | Active | SP3T | Not Specified | Mom-On-Mom | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

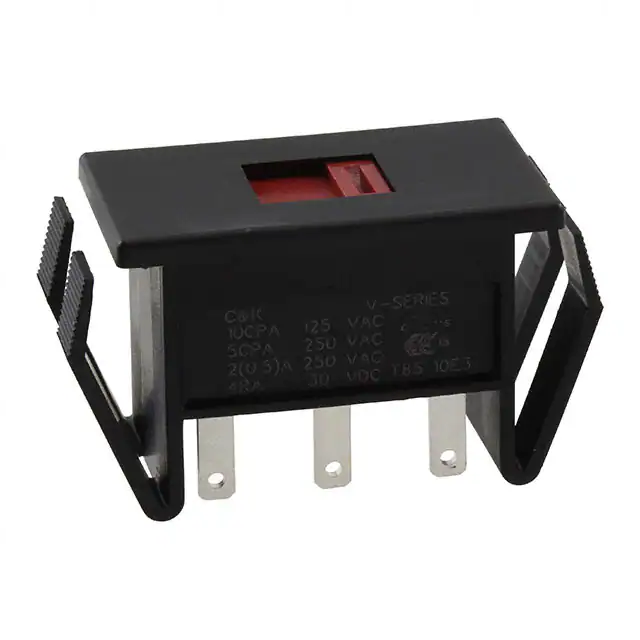

V70213S205QSWITCH SLIDE SPDT 10A 125V C&K |
3,632 |
|
Datasheet |
V | Tray | Active | SPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | No Marking |
|

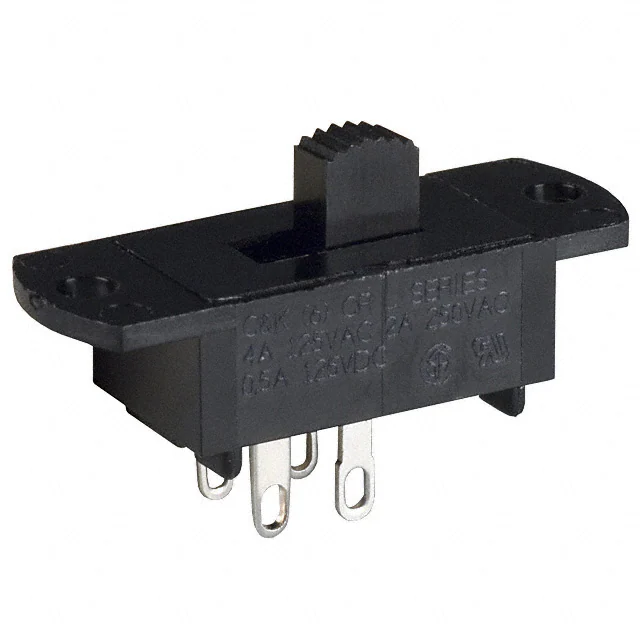

L201011SS03QSWITCH SLIDE DPST 4A 125V C&K |
4,131 |
|
Datasheet |
L | Bulk | Active | DPST | Not Specified | On-Off | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

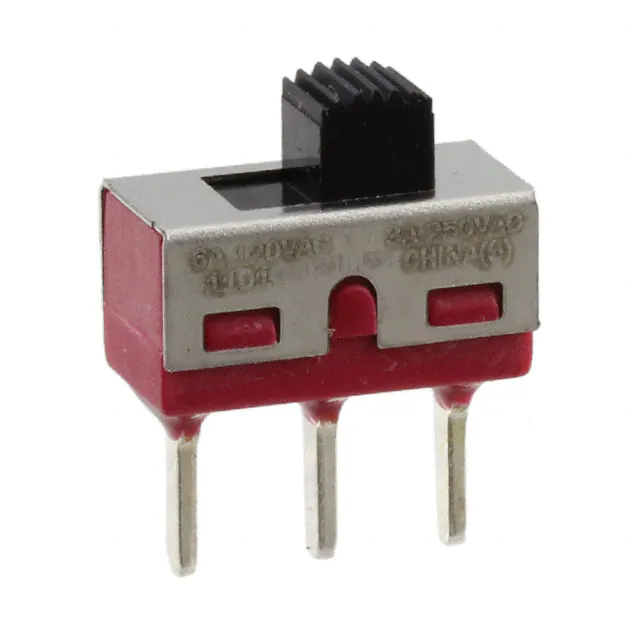

1101M2S2CQE2SWITCH SLIDE SPDT 6A 120V C&K |
3,414 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 3.56mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
1101M2S2CBE2SWITCH SLIDE SPDT 0.4VA 20V C&K |
3,465 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.56mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
S202031SSWCQSWITCH SLIDE DPDT 6A 125V C&K |
3,083 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 1A (DC) | 125 V | 125 V | Standard | 8.51mm | Copper | Silver | Panel Mount | Wire Leads | - |
|
S202031MS02QESWITCH SLIDE DPDT 6A 125V C&K |
2,813 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 1A (DC) | 125 V | 125 V | Standard | 8.51mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1101M2S5CBE2SWITCH SLIDE SPDT 0.4VA 20V C&K |
3,442 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.40mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
L202011SS03QSWITCH SLIDE DPDT 4A 125V C&K |
1,061 |
|
Datasheet |
L | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
