Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V80214SS05QESWITCH SLIDE DPDT 10A 125V C&K |
2,552 |
|
Datasheet |
V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | O - Marking, Epoxy Sealed Terminals |
|
L202021MA04BSWITCH SLIDE DPDT 0.4VA 20V C&K |
2,513 |
|
Datasheet |
L | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 8.51mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|
1108M2S3CGE2SWITCH SLIDE SPDT 6A 120V C&K |
4,569 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | On-Mom | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

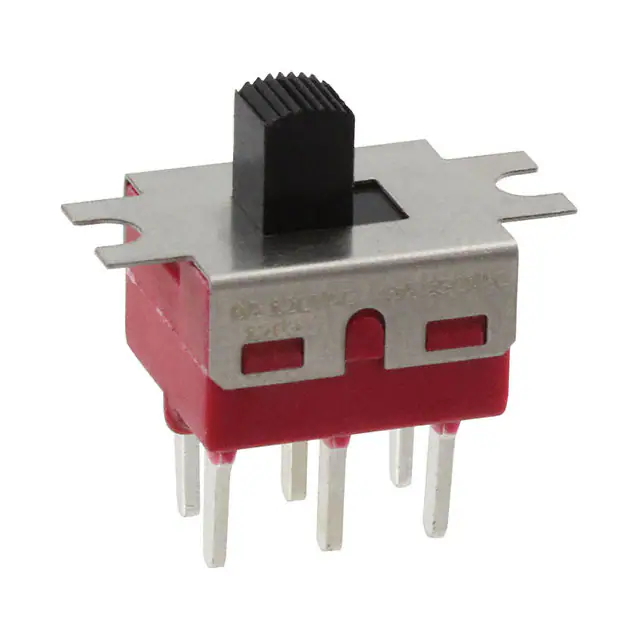

1203M1S3CQE2SWITCH SLIDE DPDT 6A 120V C&K |
3,165 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

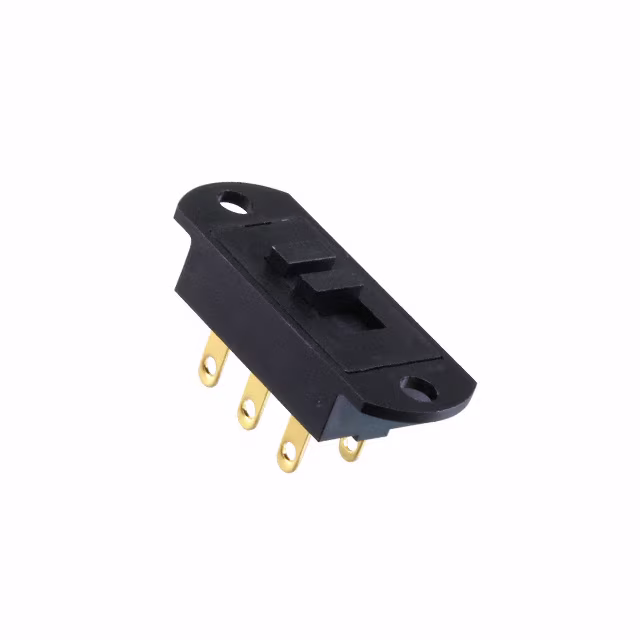

S602131SS03GSWITCH SLIDE DPDT 12A 125V C&K |
1,522 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 12A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Gold | Panel Mount | Solder Lug | No Marking |
|

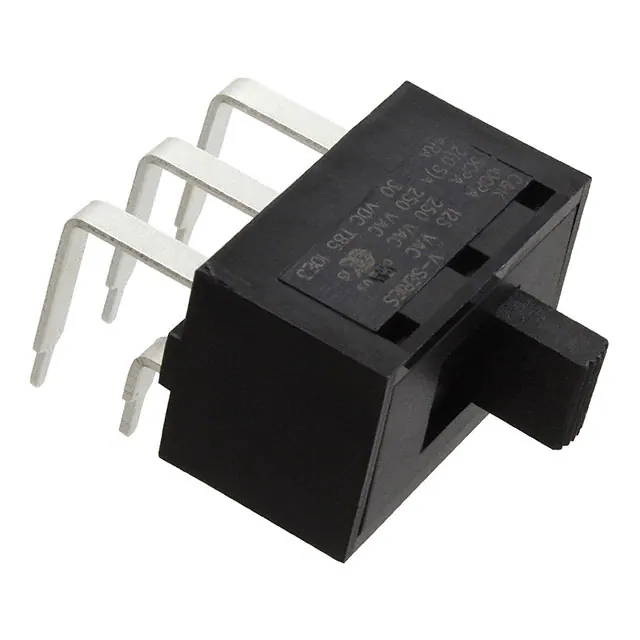

V80201MA08QSWITCH SLIDE DPDT 10A 125V C&K |
1,114 |
|
Datasheet |
V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|

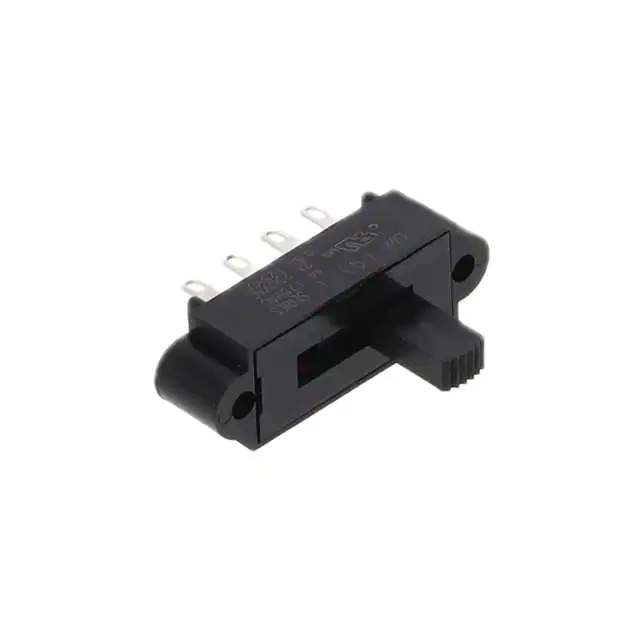

L203031TS03QSWITCH SLIDE DP3T 4A 125V C&K |
4,005 |
|
Datasheet |
L | Bulk | Active | DP3T | Not Specified | On-On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 9.53mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

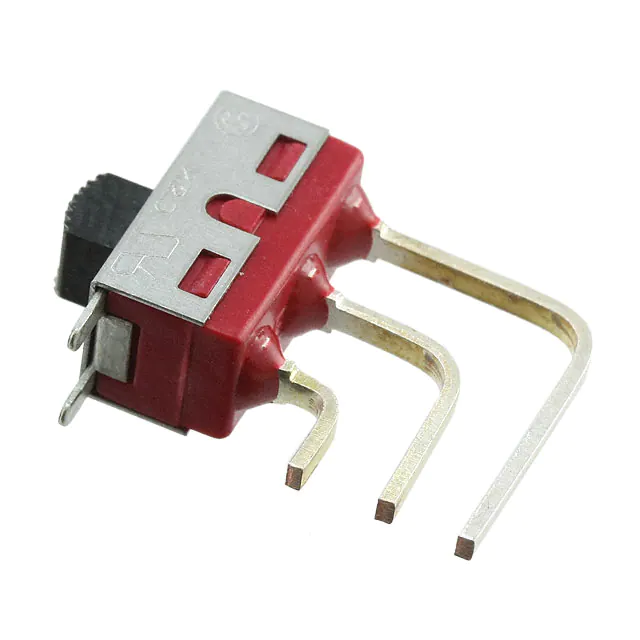

1101M2S2AV2QE2SWITCH SLIDE SPDT 6A 120V C&K |
3,684 |
|
Datasheet |
1000 | Tray | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 3.20mm | Copper | Silver | Through Hole, Right Angle, Vertical | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

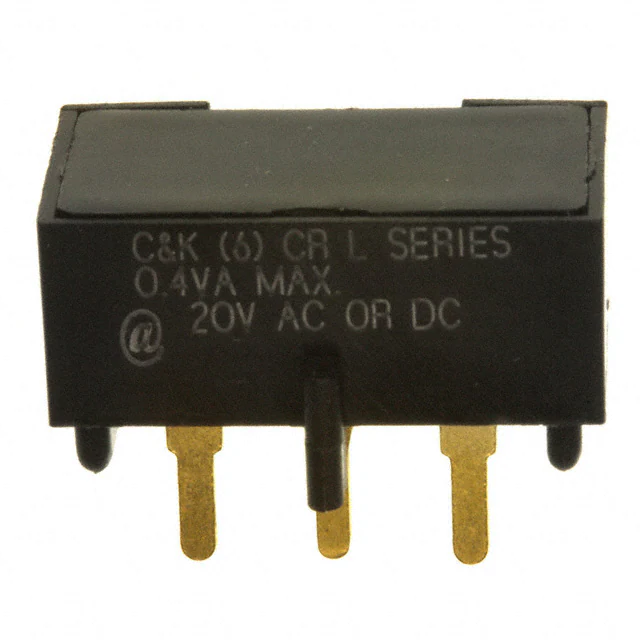

L102121ML04BSWITCH SLIDE SPDT 0.4VA 20V C&K |
1,406 |
|
Datasheet |
L | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | 1.65mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|

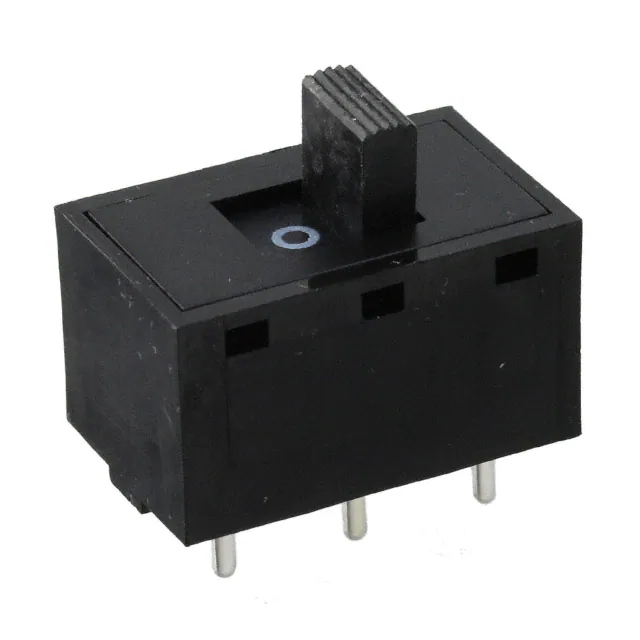

V80202MS02QSWITCH SLIDE DPDT 10A 125V C&K |
2,977 |
|
Datasheet |
V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Through Hole | PC Pin | O - Marking |
