Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQV255G3SSSR RELAY SPST-NO 2.2A 0-100V Panasonic Electric Works |
125 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 100 V | 2.2 A | 120 mOhms | Gull Wing | -40°C ~ 85°C | 6-SOP | UR | - | - |
|
AQW654ARELAY SPST-NO/NC 120MA 0-400V Panasonic Electric Works |
800 |
|
Datasheet |
PhotoMOS™ AQW | Tube | Active | Surface Mount | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.14VDC | 0 V ~ 400 V | 120 mA | 16 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UR, VDE | - | - |
|
AQY221R6TWSSR RELAY SPST-NO 800MA 0-30V Panasonic Electric Works |
2,599 |
|
Datasheet |
PhotoMOS™ AQY2 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 30 V | 800 mA | 350 mOhms | SMD (SMT) Tab | -40°C ~ 85°C | 4-VSSOP | - | - | - |
|
AQZ207DSSR RELAY SPST-NO 900MA 0-200V Panasonic Electric Works |
460 |
|
Datasheet |
PhotoMOS™ AQZ | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.4VDC | 0 V ~ 200 V | 900 mA | 1.1 Ohms | PC Pin | -40°C ~ 85°C | 4-SIL | UR, VDE | - | - |
|
AQY2C1R2P1XSSR RELAY SPST-NO 300MA 0-40V Panasonic Electric Works |
1,018 |
|
Datasheet |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.8VDC | 0 V ~ 40 V | 300 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-TSON | BSI, cURus | - | - |
|
AQY274ASSR RELAY SPST-NO 350MA 0-400V Panasonic Electric Works |
1,662 |
|
Datasheet |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.16VDC | 0 V ~ 400 V | 350 mA | 3.2 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
|
|
AQY2C2R2P1XSSR RELAY SPST-NO 300MA 0-60V Panasonic Electric Works |
1,000 |
|
Datasheet |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.7VDC | 0 V ~ 60 V | 300 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-TSON | BSI, cURus | - | - |
|

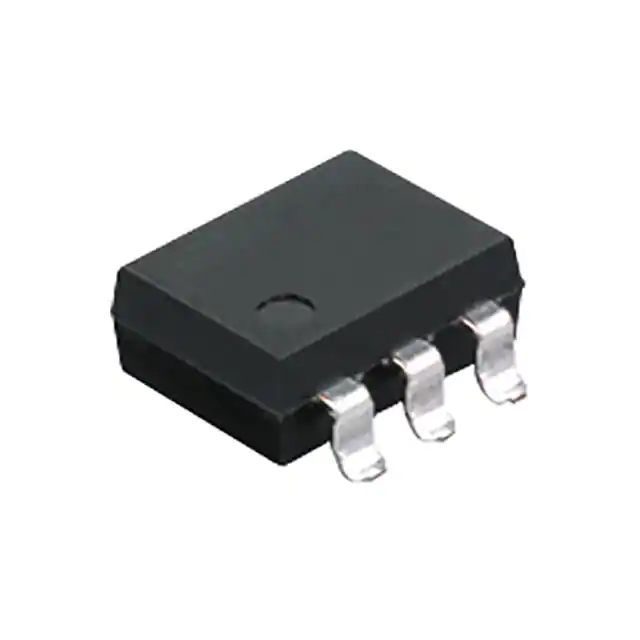

AQV209GASSR RELAY DPST-NO 750MA 0-1200V Panasonic Electric Works |
4,892 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Surface Mount | DPST-NO (2 Form A) | AC, DC | - | 0 V ~ 1200 V | 750 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
|
AQY280EHAXSSR RELAY SPST-NO 130MA 0-350V Panasonic Electric Works |
841 |
|
Datasheet |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 350 V | 130 mA | 25 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
|
|
AQY284EHAXSSR RELAY SPST-NO 120MA 0-400V Panasonic Electric Works |
1,000 |
|
Datasheet |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
