Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQV259ASSR RELAY SPST-NO 30MA 0-1000V Panasonic Electric Works |
2,883 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 1000 V | 30 mA | 200 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
|
AQV234ASSR RELAY SPST-NO 120MA 0-400V Panasonic Electric Works |
3,576 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 400 V | 120 mA | 50 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
AQW210SSR RELAY SPST-NO 120MA 0-350V Panasonic Electric Works |
4,230 |
|
Datasheet |
PhotoMOS™ AQW | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | UR, VDE | - | - |
|
AQV258H5SSR RELAY SPST-NO 20MA 0-1500V Panasonic Electric Works |
3,814 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.32VDC | 0 V ~ 1500 V | 20 mA | 500 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | UR | - | - |
|
AQJ119VSSR RELAY SPST-NO 10A 75-264V Panasonic Electric Works |
1,691 |
|
Datasheet |
AQ-J | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 10 ~ 18VDC | 75 V ~ 264 V | 10 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | cURus, VDE | - | - |
|
|
AQJ116VSSR RELAY SPST-NO 10A 75-264V Panasonic Electric Works |
4,850 |
|
Datasheet |
AQ-J | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 28VDC | 75 V ~ 264 V | 10 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | cURus, VDE | - | - |
|
|
AQJ216VSSR RELAY SPST-NO 15A 75-264V Panasonic Electric Works |
1,237 |
|
Datasheet |
AQ-J | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 28VDC | 75 V ~ 264 V | 15 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | cURus, VDE | - | - |
|
|
AQJ212VSSR RELAY SPST-NO 15A 75-264V Panasonic Electric Works |
1,347 |
|
Datasheet |
AQ-J | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 264 V | 15 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | cURus, VDE | - | - |
|

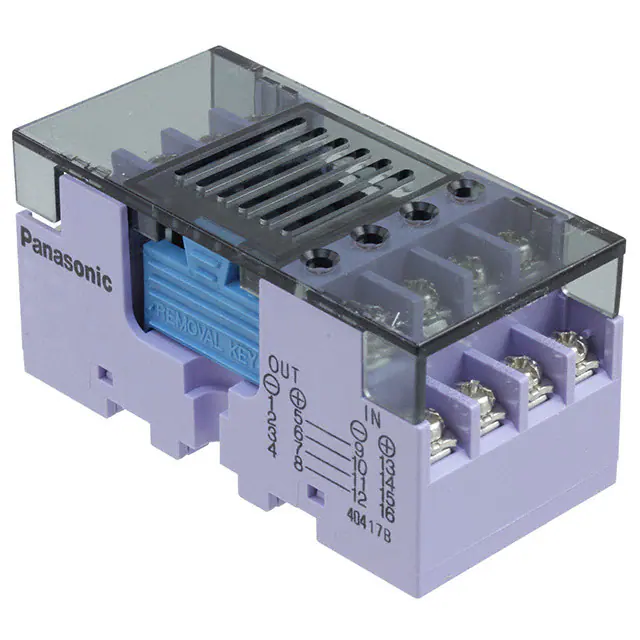

RT3SP2-12VSSR RELAY SPST-NO 300MA 0-400V Panasonic Electric Works |
1,215 |
|
Datasheet |
RT-3 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) x 4 | AC, DC | 12VDC | 0 V ~ 400 V | 300 mA | - | Screw Terminal | -20°C ~ 55°C | - | - | - | - |
|
|
RT3SP2-24VSSR RELAY SPST-NO 300MA 0-400V Panasonic Electric Works |
3,918 |
|
Datasheet |
RT-3 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) x 4 | AC, DC | 24VDC | 0 V ~ 400 V | 300 mA | - | Screw Terminal | -20°C ~ 55°C | - | - | - | - |
