Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQR15A1-S-Z4/6VDCSSR RELAY SPST-NO 15A 75-125V Panasonic Electric Works |
3,233 |
|
Datasheet |
AQ-R | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 125 V | 15 A | - | Screw Terminal | -20°C ~ 80°C | - | CSA, cURus, TUV, UR | - | - |
|
|
AQR20A2-S-Z18/28VDCSSR RELAY SPST-NO 20A 75-250V Panasonic Electric Works |
3,068 |
|
Datasheet |
AQ-R | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 28VDC | 75 V ~ 250 V | 20 A | - | Screw Terminal | -20°C ~ 80°C | - | CSA, cURus, TUV, UR | - | - |
|
|
AQR10A2-S-Z10/18VDCSSR RELAY SPST-NO 10A 75-250V Panasonic Electric Works |
3,385 |
|
Datasheet |
AQ-R | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 10 ~ 18VDC | 75 V ~ 250 V | 10 A | - | Screw Terminal | -20°C ~ 80°C | - | CSA, cURus, TUV, UR | - | - |
|

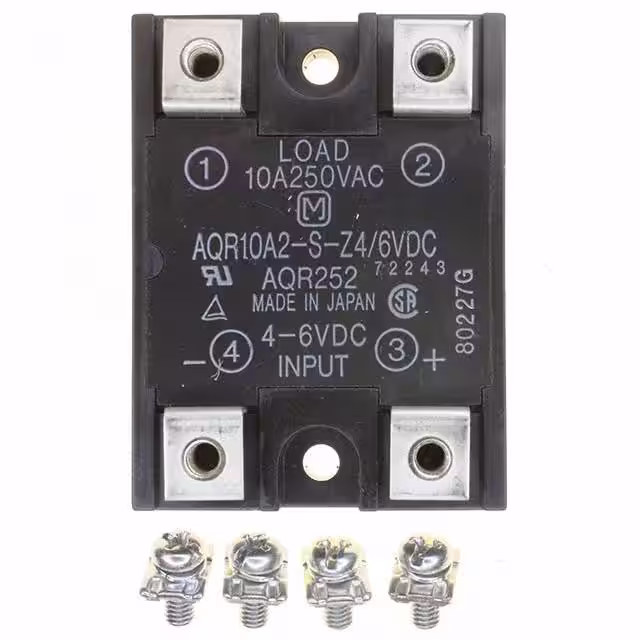

AQR10A2-S-Z4/6VDCSSR RELAY SPST-NO 10A 75-250V Panasonic Electric Works |
3,401 |
|
Datasheet |
AQ-R | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 250 V | 10 A | - | Screw Terminal | -20°C ~ 80°C | - | CSA, cURus, TUV, UR | - | - |
|
|
AQN311SSR RELAY SPST-NO 20A 75-250V Panasonic Electric Works |
2,730 |
|
Datasheet |
AQ-N | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 75 V ~ 250 V | 20 A | - | Screw Terminal | -20°C ~ 80°C | - | cURus, TUV, UR | - | - |
|
|
AQR20A1-S-Z4/6VDCSSR RELAY SPST-NO 20A 75-125V Panasonic Electric Works |
4,124 |
|
Datasheet |
AQ-R | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 125 V | 20 A | - | Screw Terminal | -20°C ~ 80°C | - | CSA, cURus, TUV, UR | - | - |
|
|
AQR20A2-S-Z10/18VDCSSR RELAY SPST-NO 20A 75-250V Panasonic Electric Works |
3,553 |
|
Datasheet |
AQ-R | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 10 ~ 18VDC | 75 V ~ 250 V | 20 A | - | Screw Terminal | -20°C ~ 80°C | - | CSA, cURus, TUV, UR | - | - |
|
|
AQN411SSR RELAY SPST-NO 25A 75-250V Panasonic Electric Works |
4,594 |
|
Datasheet |
AQ-N | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 75 V ~ 250 V | 25 A | - | Screw Terminal | -20°C ~ 80°C | - | cURus, TUV, UR | - | - |
|
AQV209GAZSSR RELAY DPST-NO 750MA 0-1200V Panasonic Electric Works |
4,214 |
|
Datasheet |
PhotoMOS™ AQV | Tape & Reel (TR) | Active | Surface Mount | DPST-NO (2 Form A) | AC, DC | - | 0 V ~ 1200 V | 750 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
|

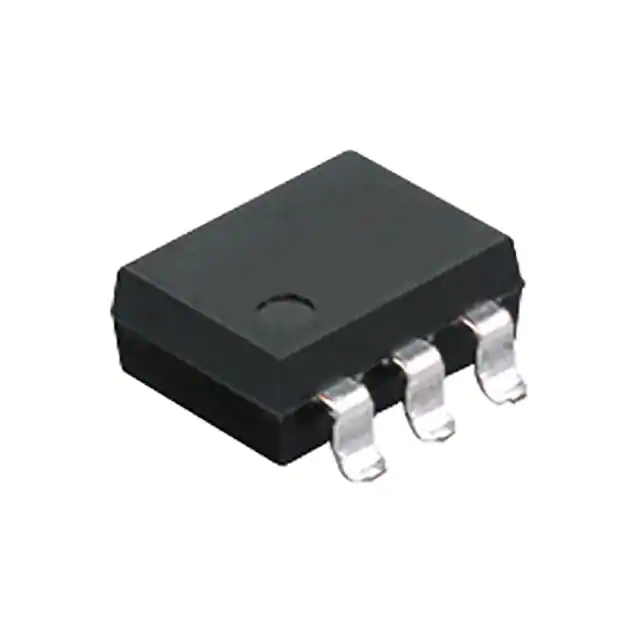

AQV209GAXSSR RELAY DPST-NO 750MA 0-1200V Panasonic Electric Works |
3,603 |
|
Datasheet |
PhotoMOS™ AQV | Tape & Reel (TR) | Active | Surface Mount | DPST-NO (2 Form A) | AC, DC | - | 0 V ~ 1200 V | 750 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
