Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

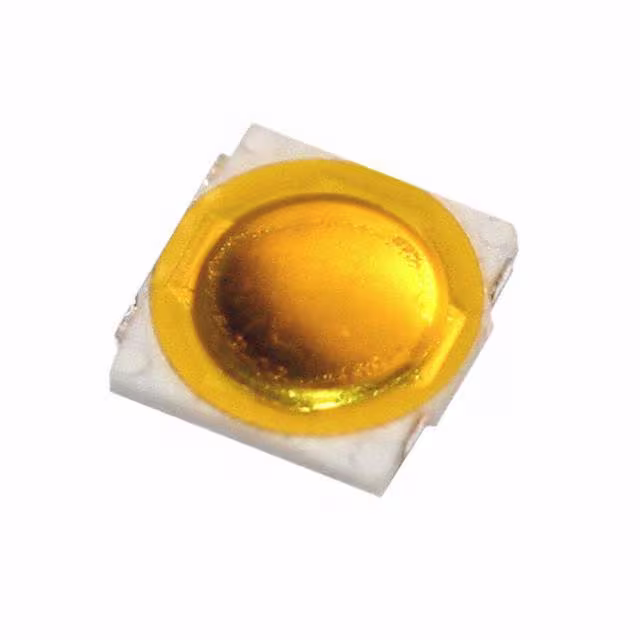

SWT4-J1WTRSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
4,375 |
|
Datasheet |
SWT4 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | J Lead | 4.60mm x 4.60mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
SWT5-J1DTRSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
1,046 |
|
Datasheet |
SWT5 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.80mm | - | Top Actuated | J Lead | 5.10mm x 5.10mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

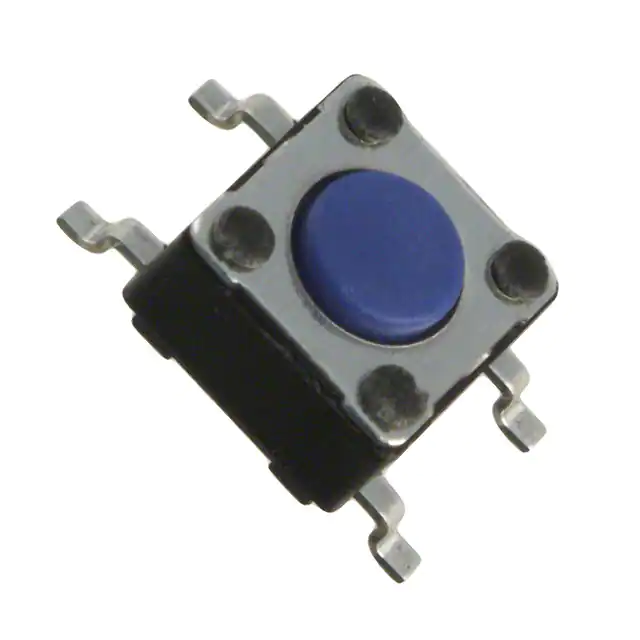

SWT6-M2BTRSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
2,019 |
|
Datasheet |
SWT6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

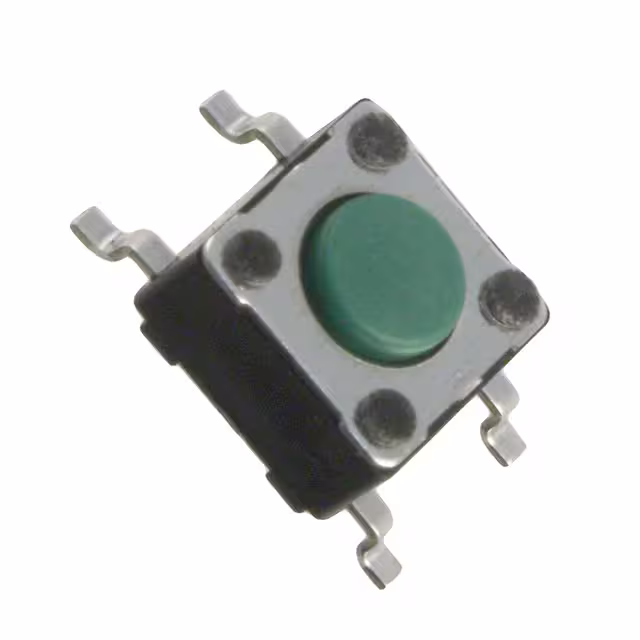

SWT6-M2GTRSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
3,625 |
|
Datasheet |
SWT6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

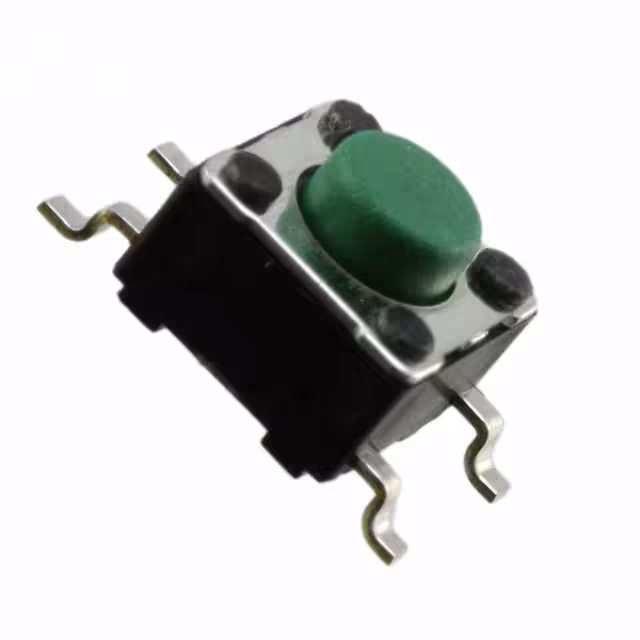

SWT6-M3GTRSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
3,070 |
|
Datasheet |
SWT6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

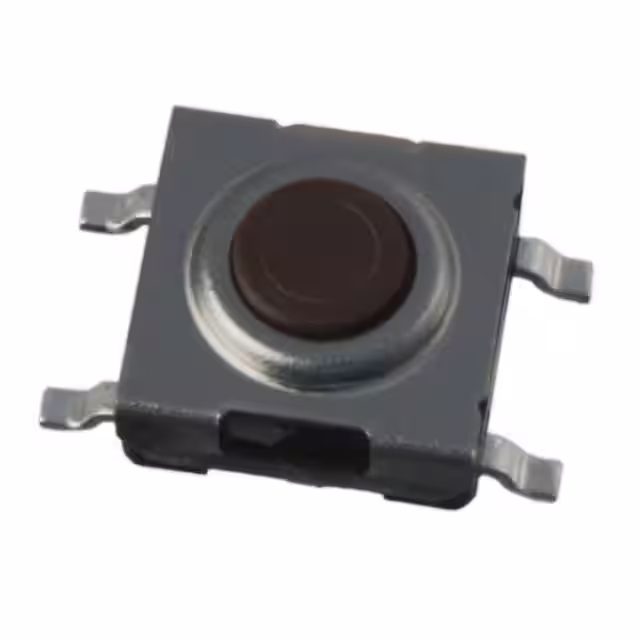

SWTW-G2NTRSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
1,640 |
|
Datasheet |
SWTW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|

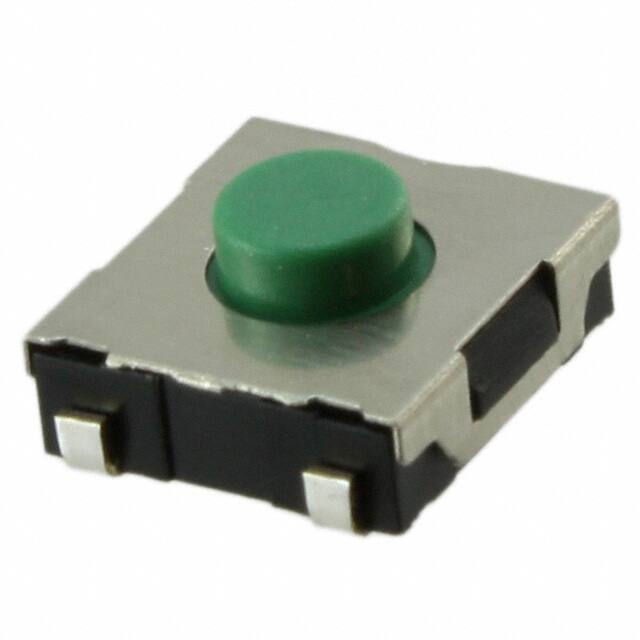

SWT7-J3GTRSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
4,268 |
|
Datasheet |
SWT7 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

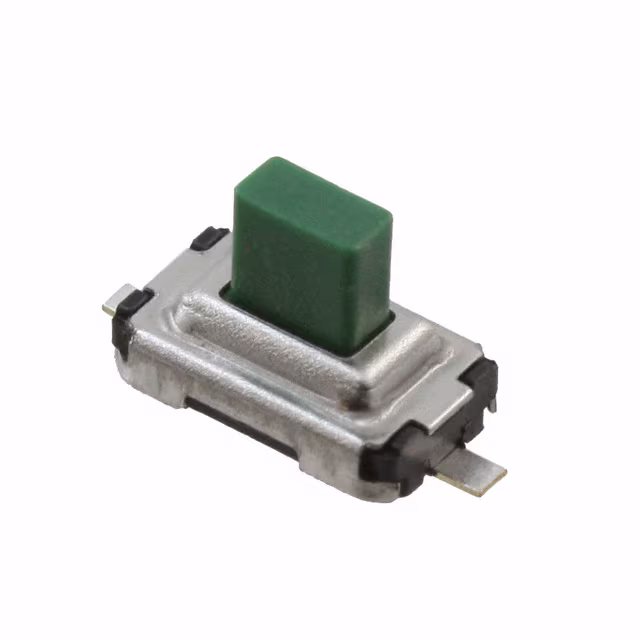

SWT3-G2GTRSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
4,533 |
|
Datasheet |
SWT3 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

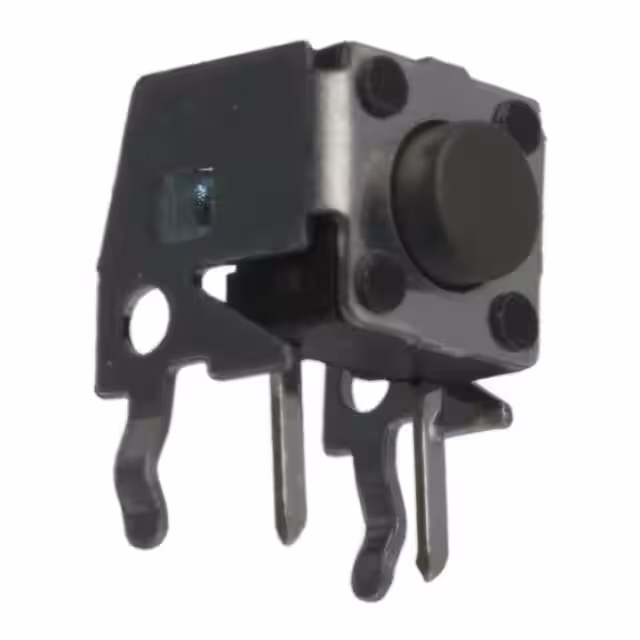

SWT6-R1MSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
2,648 |
|
Datasheet |
SWT6 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.40mm x 6.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
SWT6-R6KSWITCH TACTILE SPST-NO 0.05A 12V TT Electronics/BI |
1,275 |
|
Datasheet |
SWT6 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.40mm x 6.50mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
