Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITS40FR2STSWITCH TACTILE SPST-NO 0.05A 12V C&K |
190 |
|
Datasheet |
ITS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 8.30mm x 9.70mm | Illuminated | LED, Blue | 3.6 VDC | 160gf | - | - | -25°C ~ 70°C |
|
EDM450AUAC0 LFSSWITCH TACT SPST-NO 0.05A 100V C&K |
3,338 |
|
Datasheet |
EDM | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 100VAC/DC | Snap Dome | Through Hole | 1.20mm | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 450gf | - | Tactile Feedback | -55°C ~ 85°C |
|
PTS636SK43JSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V C&K |
1,500 |
|
Datasheet |
PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 250gf | IP40 | - | -40°C ~ 90°C |
|
PTS645SH43-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V C&K |
9,368 |
|
Datasheet |
PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|

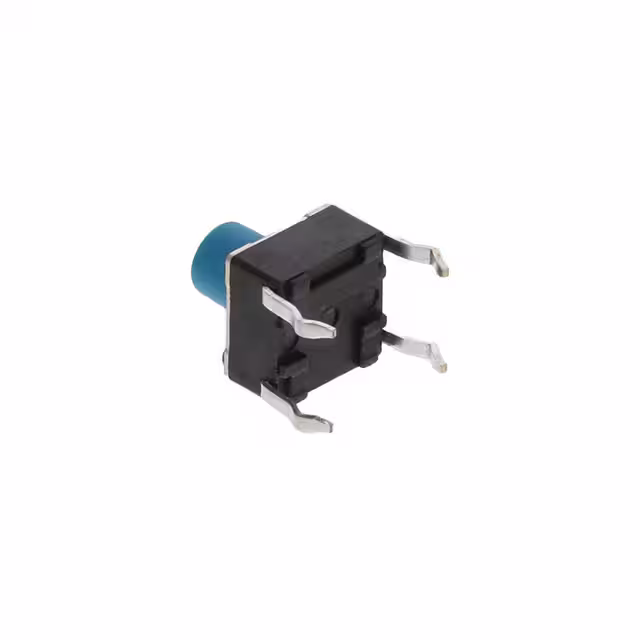

PTS645SM70-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V C&K |
8,081 |
|
Datasheet |
PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
PTS645SJL73-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V C&K |
23,647 |
|
Datasheet |
PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
PTS645SM95-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V C&K |
4,436 |
|
Datasheet |
PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
PTS645SK50JSMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V C&K |
19,784 |
|
Datasheet |
PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
PTS645SM43JSMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V C&K |
7,532 |
|
Datasheet |
PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Blue Actuator | -20°C ~ 70°C |
|
PTS645TL95-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V C&K |
20,800 |
|
Datasheet |
PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -40°C ~ 85°C |
