Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

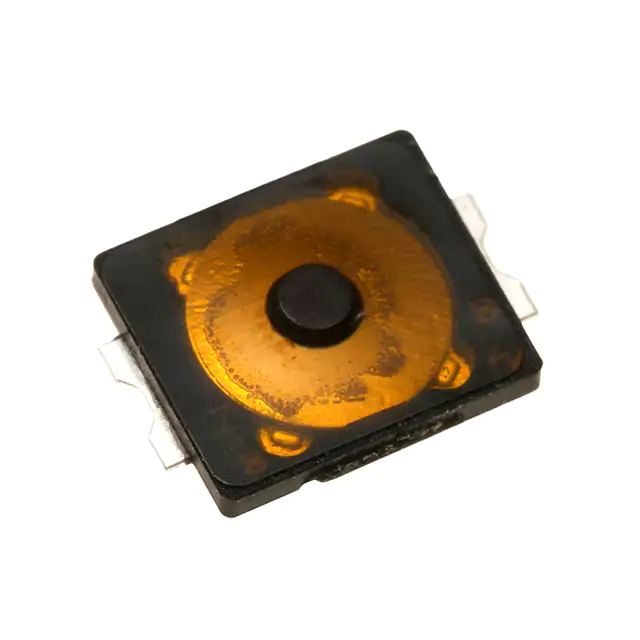

EVP-BABA3ASWITCH TACTILE SPST-NO 0.02A 15V Panasonic Electronic Components |
4,133 |
|
Datasheet |
EVPBA | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.58mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.60mm | Non-Illuminated | - | - | 180gf | - | - | -40°C ~ 85°C |
|
EVP-BB2A1B000SWITCH TACTILE SPST-NO 0.02A 15V Panasonic Electronic Components |
1,055 |
|
Datasheet |
EVPBB | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.53mm | - | Top Actuated | Gull Wing | 2.60mm x 1.60mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
EVQ-PSD02KSWITCH TACTILE SPST-NO 0.05A 12V Panasonic Electronic Components |
3,208 |
|
Datasheet |
EVQPS | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | - | Side Actuated | J Lead | 4.60mm x 6.10mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
EVP-AWBD2ASWITCH TACTILE SPST-NO 0.02A 15V Panasonic Electronic Components |
3,446 |
|
Datasheet |
EVPAW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

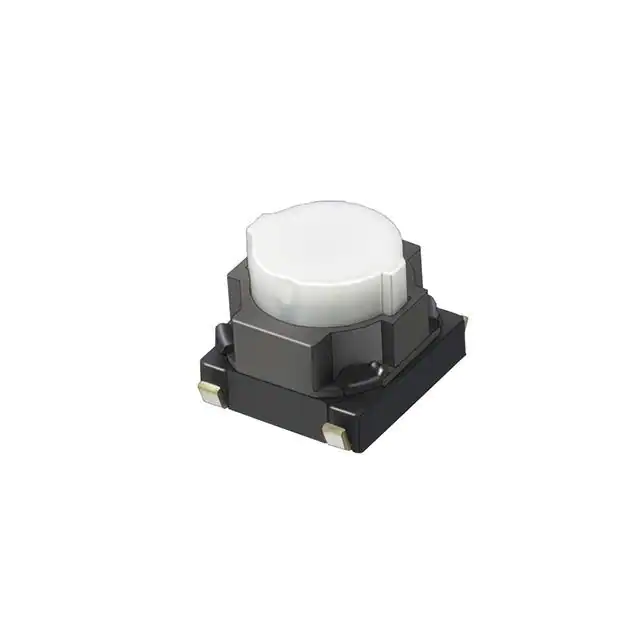

EVQ-P0405MSWITCH TACTILE SPST-NO 0.05A 12V Panasonic Electronic Components |
1,132 |
|
Datasheet |
EVQP0 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.10mm x 6.00mm | Non-Illuminated | - | - | 306gf | - | - | -40°C ~ 85°C |
|
|
EVP-AWCA2ASWITCH TACTILE SPST-NO 0.02A 15V Panasonic Electronic Components |
4,823 |
|
Datasheet |
EVPAW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 240gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
EVP-AWEA2ASWITCH TACTILE SPST-NO 0.02A 15V Panasonic Electronic Components |
3,237 |
|
Datasheet |
EVPAW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 330gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
EVQ-PNT05MSWITCH TACTILE Panasonic Electronic Components |
2,079 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EVQ-PHV03TSWITCH TACTILE SPST-NO 0.02A 15V Panasonic Electronic Components |
4,966 |
|
Datasheet |
EVQPH | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.40mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
EVQ-P7A01KSWITCH TACTILE SPST-NO 0.05A 12V Panasonic Electronic Components |
3,508 |
|
Datasheet |
EVQP7 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
