Tantalum Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Type | ESR (Equivalent Series Resistance) | Operating Temperature | Lifetime @ Temp. | Mounting Type | Size / Dimension | Height - Seated (Max) | Lead Spacing | Manufacturer Size Code | Ratings | Features | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
199D157X06R3E6V1CAP TANT 150UF 20% 6.3V RADIAL Vishay Sprague |
2,768 |
|
- |
TANTALEX™, 199D | Bulk | Active | 150 µF | ±20% | 6.3 V | Conformal Coated | - | -55°C ~ 85°C | 1000 Hrs @ 85°C | Through Hole | 0.339" Dia (8.60mm) | 0.591" (15.00mm) | 0.200" (5.08mm) | E | - | General Purpose | - | - | - |
|
|
199D157X96R3E6V1CAP TANT 150UF 10% 6.3V RADIAL Vishay Sprague |
9,241 |
|
- |
TANTALEX™, 199D | Bulk | Active | 150 µF | ±10% | 6.3 V | Conformal Coated | - | -55°C ~ 85°C | 1000 Hrs @ 85°C | Through Hole | 0.339" Dia (8.60mm) | 0.591" (15.00mm) | 0.200" (5.08mm) | E | - | General Purpose | - | - | - |
|
|
199D566X9016E6V1CAP TANT 56UF 10% 16V RADIAL Vishay Sprague |
3,900 |
|
- |
TANTALEX™, 199D | Bulk | Active | 56 µF | ±10% | 16 V | Conformal Coated | - | -55°C ~ 85°C | 1000 Hrs @ 85°C | Through Hole | 0.339" Dia (8.60mm) | 0.591" (15.00mm) | 0.200" (5.08mm) | E | - | General Purpose | - | - | - |
|

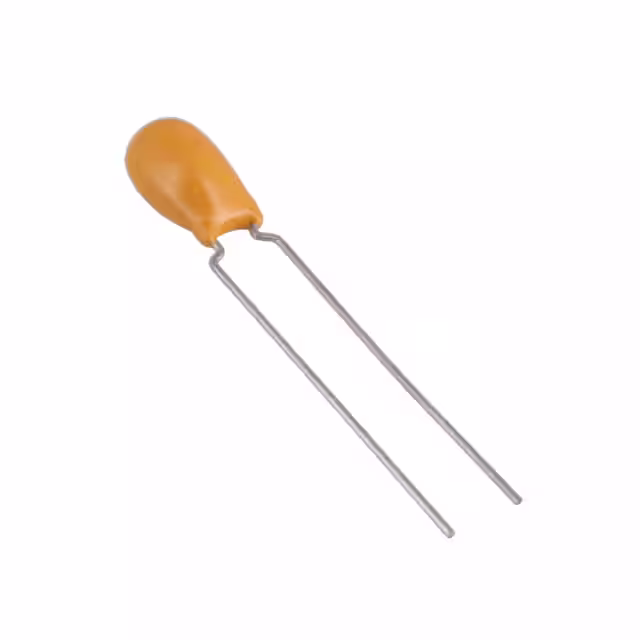

199D686X0016E6V1CAP TANT 68UF 20% 16V RADIAL Vishay Sprague |
5,778 |
|
- |
TANTALEX™, 199D | Bulk | Active | 68 µF | ±20% | 16 V | Conformal Coated | - | -55°C ~ 85°C | 1000 Hrs @ 85°C | Through Hole | 0.339" Dia (8.60mm) | 0.591" (15.00mm) | 0.200" (5.08mm) | E | - | General Purpose | - | - | - |
|
|
199D686X9016E6V1CAP TANT 68UF 10% 16V RADIAL Vishay Sprague |
7,189 |
|
- |
TANTALEX™, 199D | Bulk | Active | 68 µF | ±10% | 16 V | Conformal Coated | - | -55°C ~ 85°C | 1000 Hrs @ 85°C | Through Hole | 0.339" Dia (8.60mm) | 0.591" (15.00mm) | 0.200" (5.08mm) | E | - | General Purpose | - | - | - |
|
150D125X9020A2BCAP TANT 1.2UF 10% 20V AXIAL Vishay Sprague |
8,613 |
|
- |
TANTALEX™, 150D | Bulk | Active | 1.2 µF | ±10% | 20 V | Hermetically Sealed | - | -55°C ~ 125°C | 1000 Hrs @ 125°C | Through Hole | 0.135" Dia x 0.286" L (3.43mm x 7.26mm) | - | - | A | - | General Purpose | - | - | - |
|
|
150D225X5015A0BCAP TANT 2.2UF 5% 15V AXIAL Vishay Sprague |
3,500 |
|
- |
TANTALEX™, 150D | Bulk | Active | 2.2 µF | ±5% | 15 V | Hermetically Sealed | - | -55°C ~ 125°C | 1000 Hrs @ 125°C | Through Hole | 0.135" Dia x 0.286" L (3.43mm x 7.26mm) | - | - | A | - | General Purpose | - | - | - |
|
|
150D225X5015A2BCAP TANT 2.2UF 5% 15V AXIAL Vishay Sprague |
5,661 |
|
- |
TANTALEX™, 150D | Bulk | Active | 2.2 µF | ±5% | 15 V | Hermetically Sealed | - | -55°C ~ 125°C | 1000 Hrs @ 125°C | Through Hole | 0.135" Dia x 0.286" L (3.43mm x 7.26mm) | - | - | A | - | General Purpose | - | - | - |
|
|
150D225X5020A2BCAP TANT 2.2UF 5% 20V AXIAL Vishay Sprague |
7,807 |
|
- |
TANTALEX™, 150D | Bulk | Active | 2.2 µF | ±5% | 20 V | Hermetically Sealed | - | -55°C ~ 125°C | 1000 Hrs @ 125°C | Through Hole | 0.135" Dia x 0.286" L (3.43mm x 7.26mm) | - | - | A | - | General Purpose | - | - | - |
|
893D475X9050D2TE3CAP TANT 4.7UF 10% 50V 2917 Vishay Sprague |
3,944 |
|
- |
TANTAMOUNT™, 893D | Tape & Reel (TR) | Obsolete | 4.7 µF | ±10% | 50 V | Molded | 1.1Ohm | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | Fail Safe with Built-in Fuse | - | - | - |
