Tantalum Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Type | ESR (Equivalent Series Resistance) | Operating Temperature | Lifetime @ Temp. | Mounting Type | Size / Dimension | Height - Seated (Max) | Lead Spacing | Manufacturer Size Code | Ratings | Features | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39003/01-2542/TRCAP TANT 100UF 20% 20V AXIAL Vishay Sprague |
2,646 |
|
- |
CSR13 | Tape & Reel (TR) | Active | 100 µF | ±20% | 20 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.351" Dia x 0.786" L (8.92mm x 19.96mm) | - | - | D | - | High Reliability | P (0.1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2550/TRCAP TANT 33UF 20% 35V AXIAL Vishay Sprague |
2,055 |
|
- |
CSR13 | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.351" Dia x 0.786" L (8.92mm x 19.96mm) | - | - | D | - | High Reliability | P (0.1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2553/TRCAP TANT 47UF 20% 35V AXIAL Vishay Sprague |
8,334 |
|
- |
CSR13 | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.351" Dia x 0.786" L (8.92mm x 19.96mm) | - | - | D | - | High Reliability | P (0.1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2816/TRCAP TANT 0.068UF 20% 50V AXIAL Vishay Sprague |
6,993 |
|
- |
CSR13 | Tape & Reel (TR) | Active | 0.068 µF | ±20% | 50 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.135" Dia x 0.286" L (3.43mm x 7.26mm) | - | - | A | - | High Reliability | R (0.01%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2813/TRCAP TANT 0.047UF 20% 50V AXIAL Vishay Sprague |
3,248 |
|
- |
CSR13 | Tape & Reel (TR) | Active | 0.047 µF | ±20% | 50 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.135" Dia x 0.286" L (3.43mm x 7.26mm) | - | - | A | - | High Reliability | R (0.01%) | Military | MIL-PRF-39003/1 |
|

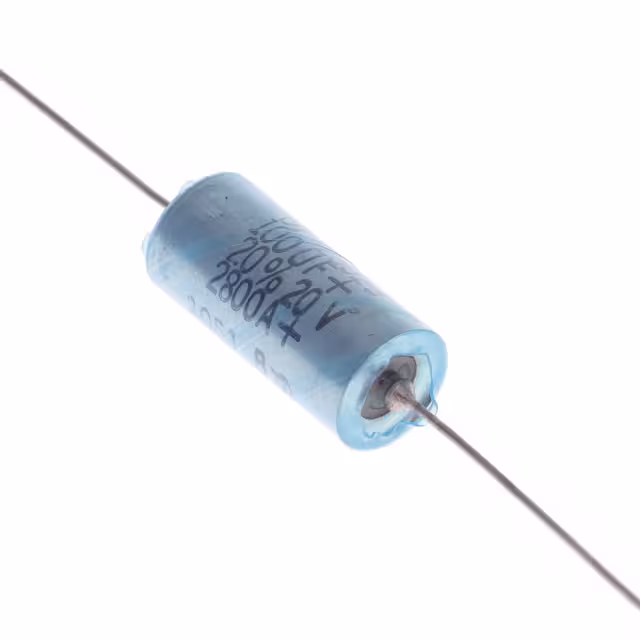

M39003/01-2302CAP TANT 100UF 20% 20V AXIAL Vishay Sprague |
7,045 |
|
- |
CSR13 | Bulk | Active | 100 µF | ±20% | 20 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.351" Dia x 0.786" L (8.92mm x 19.96mm) | - | - | D | - | High Reliability | M (1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2373CAP TANT 8.2UF 10% 50V AXIAL Vishay Sprague |
9,529 |
|
- |
CSR13 | Bulk | Active | 8.2 µF | ±10% | 50 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.289" Dia x 0.686" L (7.34mm x 17.42mm) | - | - | C | - | High Reliability | M (1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2373HCAP TANT 8.2UF 10% 50V AXIAL Vishay Sprague |
8,510 |
|
- |
CSR13 | Bulk | Active | 8.2 µF | ±10% | 50 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.289" Dia x 0.686" L (7.34mm x 17.42mm) | - | - | C | - | High Reliability | M (1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/03-4076/HSDCAP TANT 1.2UF 10% 50V AXIAL Vishay Sprague |
3,236 |
|
- |
CSR23 | Bulk | Active | 1.2 µF | ±10% | 50 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.135" Dia x 0.286" L (3.43mm x 7.26mm) | - | - | A | - | High Reliability | D (0.001%) | Military | MIL-PRF-39003/3 |
|
|
M39003/03-4077/HSDCAP TANT 1.5UF 10% 50V AXIAL Vishay Sprague |
5,985 |
|
- |
CSR23 | Bulk | Active | 1.5 µF | ±10% | 50 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.135" Dia x 0.286" L (3.43mm x 7.26mm) | - | - | A | - | High Reliability | D (0.001%) | Military | MIL-PRF-39003/3 |
