Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TUW10JR10ERES 0.1 OHM 5% 10W AXIAL Ohmite |
2,410 |
|
Datasheet |
TUW | Bulk | Active | 100 mOhms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 1.929" L (10.00mm x 9.00mm x 49.00mm) | - | 2 | - |
|
TWW10J4R7ERES 4.7 OHM 5% 10W RADIAL Ohmite |
604 |
|
Datasheet |
TWW | Bulk | Active | 4.7 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 2.008" (51.00mm) | 2 | - |
|
TUW10J390ERES 390 OHM 5% 10W AXIAL Ohmite |
3,720 |
|
Datasheet |
TUW | Bulk | Active | 390 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±350ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 1.929" L (10.00mm x 9.00mm x 49.00mm) | - | 2 | - |
|
43F820ERES 820 OHM 1% 3W AXIAL Ohmite |
187 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 820 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
B20J300ERES 300 OHM 5% 20W AXIAL Ohmite |
107 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 300 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
WHA10RFETRES 10 OHM 1% 1/2W AXIAL Ohmite |
1,543 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
WHA25RFETRES 25 OHM 1% 1/2W AXIAL Ohmite |
965 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 25 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
WHB4R0FETRES 4 OHM 1% 1W AXIAL Ohmite |
929 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 4 Ohms | ±1% | 1W | Wirewound | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|

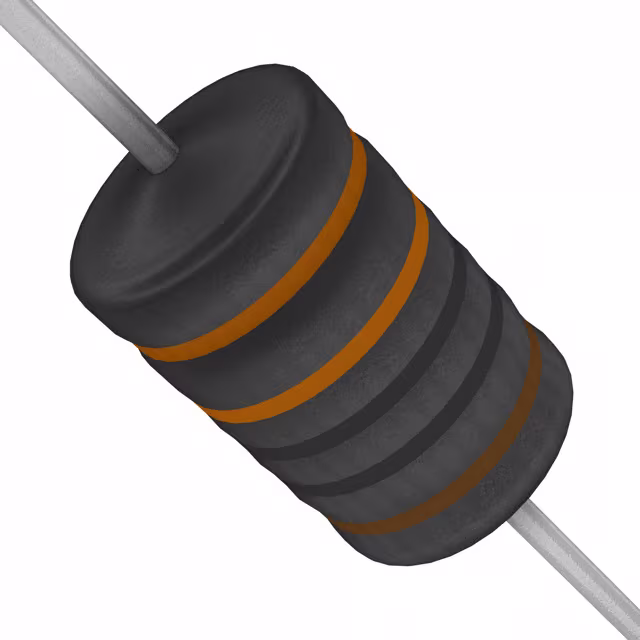

WHC330FETRES 330 OHM 1% 2W AXIAL Ohmite |
910 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 330 Ohms | ±1% | 2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
OU221KE1W FILM COMPOSITION AXIAL Ohmite |
500 |
|
Datasheet |
OU | Box | Active | 220 Ohms | ±10% | 1W | Ceramic | - | -3000ppm/°C | -55°C ~ 200°C | Axial | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | - | 2 | - |
