Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45F180ERES 180 OHM 1% 5W AXIAL Ohmite |
235 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 180 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
OX272KERES 2.7K OHM 10% 1W AXIAL Ohmite |
860 |
|
Datasheet |
OX | Bulk | Active | 2.7 kOhms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|

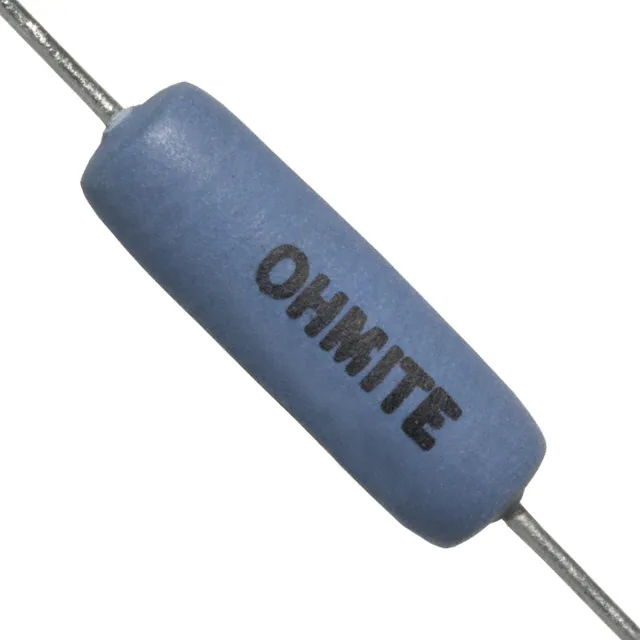

35J36RERES 36 OHM 5% 5W AXIAL Ohmite |
259 |
|
Datasheet |
High Energy Wirewound | Bulk | Active | 36 Ohms | ±5% | 5W | Wirewound | - | - | - | Axial | 0.343" Dia x 1.000" L (8.70mm x 25.40mm) | - | 2 | - |
|
WNC250FETRES 250 OHM 1% 2W AXIAL Ohmite |
978 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 250 Ohms | ±1% | 2W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
|
45F75RERES 75 OHM 1% 5W AXIAL Ohmite |
315 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 75 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
40F100ERES 100 OHM 1% 10W AXIAL Ohmite |
208 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 Ohms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
20J470ERES 470 OHM 5% 10W AXIAL Ohmite |
406 |
|
Datasheet |
20 | Bulk | Active | 470 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
22J50RERES 50 OHM 5% 2W AXIAL Ohmite |
250 |
|
Datasheet |
20 | Bulk | Active | 50 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.421" L (5.60mm x 10.70mm) | - | 2 | - |
|
|
20J450ERES 450 OHM 5% 10W AXIAL Ohmite |
249 |
|
Datasheet |
20 | Bulk | Active | 450 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
25J2R2ERES 2.2 OHM 5% 5W AXIAL Ohmite |
246 |
|
Datasheet |
20 | Bulk | Active | 2.2 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±50ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
