Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP830 R2 JRES 0.2 OHM 5% 30W TO220 Ohmite |
100 |
|
Datasheet |
ARCOL, AP830 | Tube | Active | 200 mOhms | ±5% | 30W | Thick Film | Non-Inductive | - | -65°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.810" (20.58mm) | 2 | - |
|
|
AP836 10R FRES 10 OHM 1% 35W TO220-2 Ohmite |
4,494 |
|
Datasheet |
ARCOL, AP836 | Tube | Active | 10 Ohms | ±1% | 35W | Thick Film | Non-Inductive | ±100ppm/°C | -65°C ~ 150°C | TO-220-2 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
93J1R0ERES 1 OHM 5% 3.25W AXIAL Ohmite |
1,490 |
|
Datasheet |
90 | Bulk | Active | 1 Ohms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±100ppm/°C | - | Axial | 0.233" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|
|
AP836 1K FRES 1K OHM 1% 35W TO220-2 Ohmite |
100 |
|
Datasheet |
ARCOL, AP836 | Tube | Active | 1 kOhms | ±1% | 35W | Thick Film | Non-Inductive | ±100ppm/°C | -65°C ~ 150°C | TO-220-2 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
AP820 2R5 F 300PPMRES 2.5 OHM 1% 30W TO220 Ohmite |
100 |
|
Datasheet |
ARCOL, AP830 | Tube | Active | 2.5 Ohms | ±1% | 30W | Thick Film | Non-Inductive | ±300ppm/°C | -65°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.810" (20.58mm) | 2 | - |
|
|
AP830 25R F 50PPMRES 25 OHM 1% 30W TO220 Ohmite |
100 |
|
Datasheet |
ARCOL, AP830 | Tube | Active | 25 Ohms | ±1% | 30W | Thick Film | Non-Inductive | ±50ppm/°C | -65°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.810" (20.58mm) | 2 | - |
|

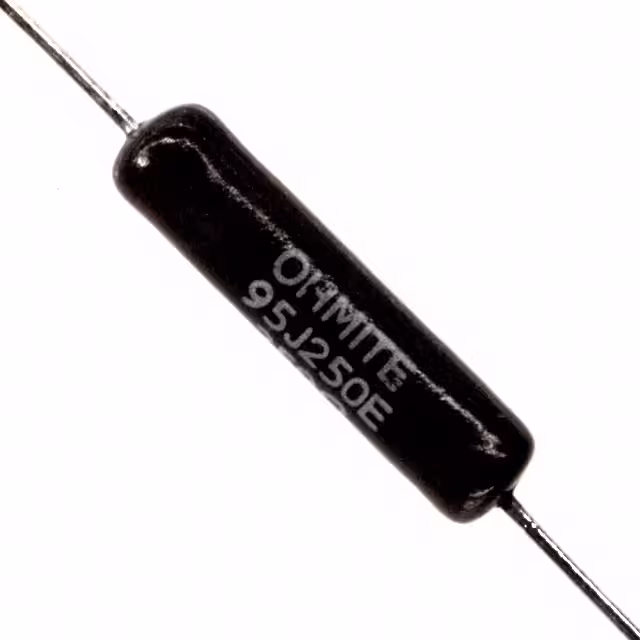

95J250ERES 250 OHM 5% 5W AXIAL Ohmite |
100 |
|
Datasheet |
90 | Bulk | Active | 250 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
95J20RERES 20 OHM 5% 5W AXIAL Ohmite |
100 |
|
Datasheet |
90 | Bulk | Active | 20 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
|
95J100ERES 100 OHM 5% 5W AXIAL Ohmite |
2,003 |
|
Datasheet |
90 | Bulk | Active | 100 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
|
95J200ERES 200 OHM 5% 5W AXIAL Ohmite |
1,109 |
|
Datasheet |
90 | Bulk | Active | 200 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
