Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM204032003JERES 200K OHM 5% 2W RADIAL Ohmite |
3,973 |
|
Datasheet |
Slim-Mox | Bulk | Active | 200 kOhms | ±5% | 2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.590" (14.99mm) | 2 | - |
|
|
SM204035003JERES 500K OHM 5% 2W RADIAL Ohmite |
1,514 |
|
Datasheet |
Slim-Mox | Bulk | Active | 500 kOhms | ±5% | 2W | Thick Film | Non-Inductive | - | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.590" (14.99mm) | 2 | - |
|
TCH35P5K10JERES 5.1K OHM 5% 35W TO220-2 Ohmite |
4,614 |
|
Datasheet |
TCH | Tube | Active | 5.1 kOhms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220-2 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.787" (20.00mm) | 2 | - |
|
TA310PA100RJERES 100 OHM 5% 10W POWERCHIP Ohmite |
3,243 |
|
Datasheet |
TA | Tray | Active | 100 Ohms | ±5% | 10W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 1.000" L x 0.100" W (25.40mm x 2.54mm) | 1.067" (27.10mm) | 4 | - |
|
SM108034007FERES 4 GOHM 1% 2.5W RADIAL Ohmite |
2,245 |
|
Datasheet |
Slim-Mox | Bulk | Active | 4 GOhms | ±1% | 2.5W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 2.080" L x 0.100" W (52.83mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
SM100031210JRES 121 OHM 1/4W 5% RADIAL Ohmite |
2,281 |
|
Datasheet |
Slim-Mox | Bulk | Obsolete | 121 Ohms | ±5% | 0.25W, 1/4W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.300" L x 0.100" W (7.62mm x 2.54mm) | 0.300" (7.62mm) | 2 | - |
|
|
TCH35P24R0JERES 24 OHM 5% 35W TO220 Ohmite |
2,675 |
|
Datasheet |
TCH | Tube | Active | 24 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
B12J45KRES 45K OHM 5% 12W AXIAL Ohmite |
4,944 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 45 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
93J5K03.25W 5K0 OHMS VIT MOLD 5% Ohmite |
2,785 |
|
Datasheet |
90 | Bulk | Active | 5 kOhms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.233" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|

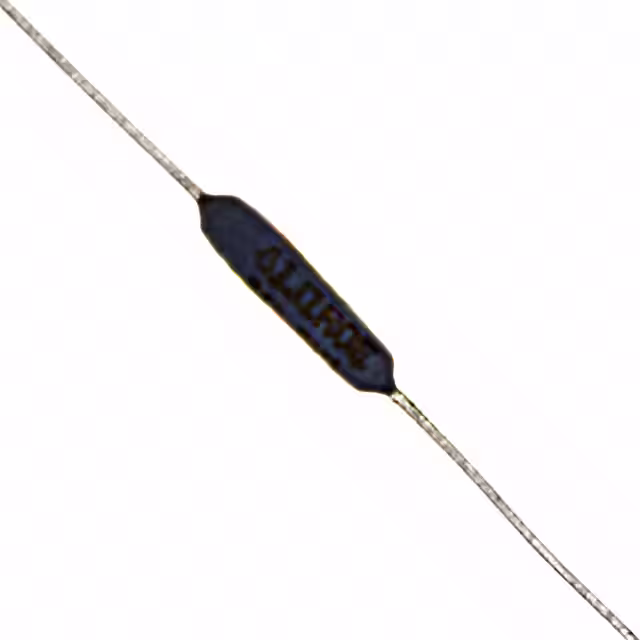

41J1R0ERES 1 OHM 5% 1W AXIAL Ohmite |
3,346 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 Ohms | ±5% | 1W | Wirewound | - | ±50ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
