Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TUW10J1R5E10W CERAMIC AXL WIREWOUND 5% Ohmite |
3,600 |
|
Datasheet |
TUW | Box | Active | 1.5 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | 275°C | Axial | 1.929" L x 0.394" W (49.00mm x 10.00mm) | 0.394" (10.00mm) | 2 | - |
|
615HR020ERES 0.02 OHM 3% 1.5W AXIAL Ohmite |
4,901 |
|
Datasheet |
60 | Bulk | Active | 20 mOhms | ±3% | 1.5W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.750" L (19.05mm) | - | 2 | - |
|
605HR100RES 0.1 OHM 3% 1/2W AXIAL Ohmite |
1,796 |
|
Datasheet |
60 | Bulk | Active | 100 mOhms | ±3% | 0.5W, 1/2W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.750" L (19.05mm) | - | 2 | - |
|
605HR020E1/2 W METAL ELEMENT D81496-130 C Ohmite |
1,605 |
|
Datasheet |
60 | Bulk | Active | 20 mOhms | ±3% | 0.5W, 1/2W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | - | - | 2 | - |
|
WHA330FETRES 330 OHM 1% 1/2W AXIAL Ohmite |
4,794 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 330 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
WHA470FETRES 470 OHM 1% 1/2W AXIAL Ohmite |
1,618 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 470 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|

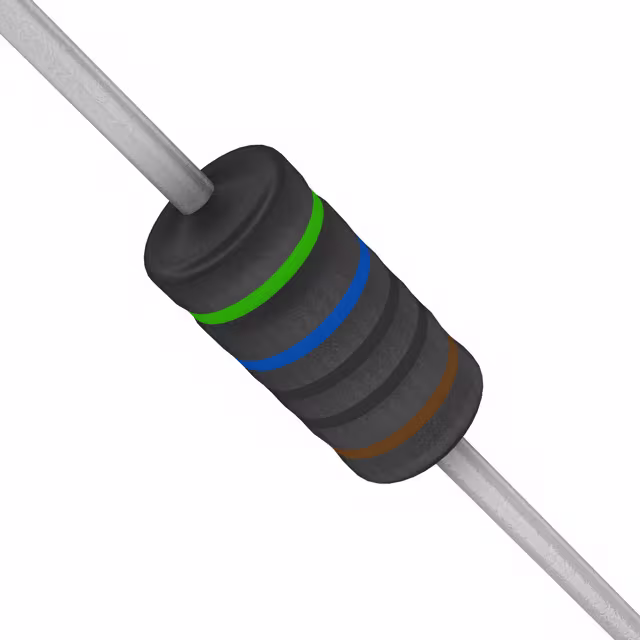

WHA560FETRES 560 OHM 1% 1/2W AXIAL Ohmite |
4,705 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 560 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
WHA750FETRES 750 OHM 1% 1/2W AXIAL Ohmite |
1,675 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 750 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
WNCR75FETRES 0.75 OHM 1% 2W AXIAL Ohmite |
2,993 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 750 mOhms | ±1% | 2W | Wirewound | Non-Inductive | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
WNC15RFETRES 15 OHM 1% 2W AXIAL Ohmite |
1,988 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 15 Ohms | ±1% | 2W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
