Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20JR30E10W 0.3 OHMS VITREOUS 5% Ohmite |
2,749 |
|
Datasheet |
20 | Box | Active | 300 mOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
45F5K65W 5K6 OHMS SILICONE 1% NON ROHS Ohmite |
4,836 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 5.6 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
45F3R0E5W 3 OHMS SILICONE 1% Ohmite |
1,402 |
|
Datasheet |
40 | Bulk | Active | 3 Ohms | ±1% | 5W | Wirewound | - | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
ACS5S6R8JTRRES 6.8 OHM 5% 5W AXIAL Ohmite |
1,881 |
|
Datasheet |
ACS5S ACS10S | Tape & Reel (TR) | Discontinued at Digi-Key | 6.8 Ohms | ±5% | 5W | - | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.188" Dia x 0.500" L (4.78mm x 12.70mm) | - | 2 | - |
|
42JR40ERES 0.4 OHM 5% 2W AXIAL Ohmite |
4,156 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 400 mOhms | ±5% | 2W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|

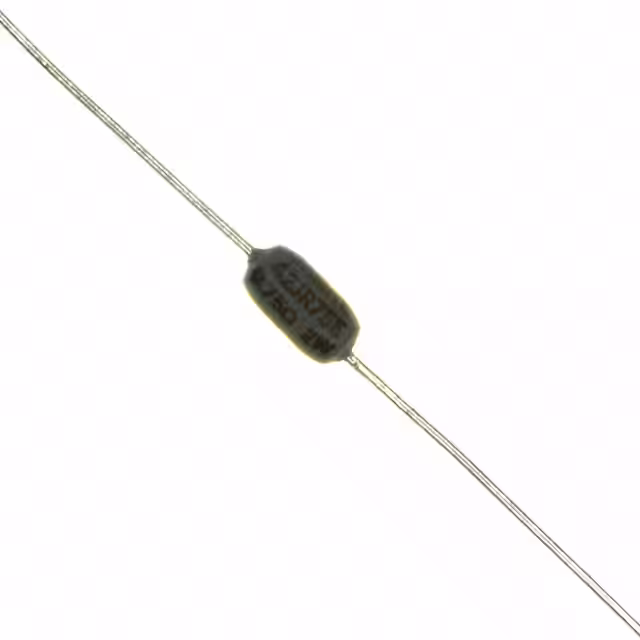

42JR75ERES 0.75 OHM 5% 2W AXIAL Ohmite |
2,140 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 750 mOhms | ±5% | 2W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
43J8K0ERES 8K OHM 5% 3W AXIAL Ohmite |
1,230 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 8 kOhms | ±5% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
41J500ERES 500 OHM 5% 1W AXIAL Ohmite |
2,731 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 500 Ohms | ±5% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
40F1K8E10W 1K8 OHMS SILICONE 1% Ohmite |
2,394 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 1.8 kOhms | ±1% | 10W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
43F7K0E3W 7K0 OHMS SILICONE 1% Ohmite |
4,830 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 7 kOhms | ±1% | 3W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
