Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45J3K3E5W 3K3 OHMS SILICONE 5% Ohmite |
3,346 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 3.3 kOhms | ±5% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|

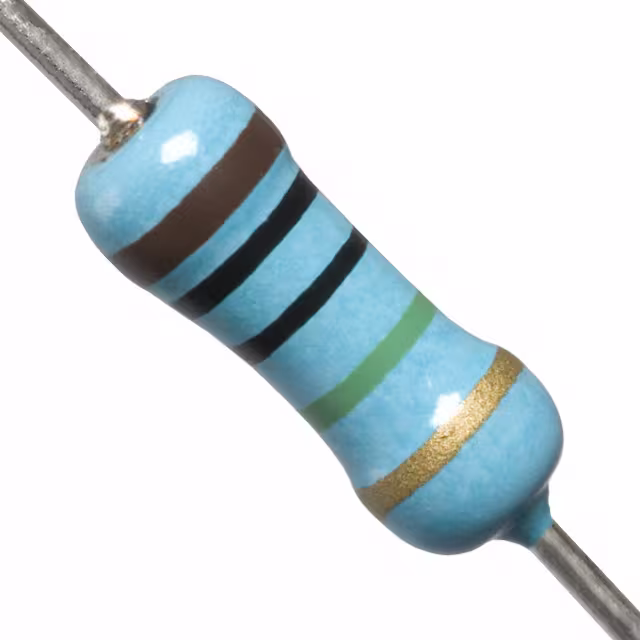

MOX300001005JERES 10M OHM 5% 1/2W AXIAL Ohmite |
2,017 |
|
Datasheet |
Mini-Mox | Bulk | Active | 10 MOhms | ±5% | 0.5W, 1/2W | Thick Film | High Voltage, Moisture Resistant | 100ppm/°C | -55°C ~ 155°C | Axial | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | - | 2 | - |
|
MOX300002006JEMOX-300,200 MEG,5% Ohmite |
2,864 |
|
Datasheet |
Mini-Mox | Box | Active | 200 MOhms | ±5% | 0.5W, 1/2W | Thick Film | High Voltage, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | - | 2 | - |
|
|
45J3K9ERES 3.9K OHM 5% 5W AXIAL Ohmite |
4,966 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 3.9 kOhms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
40JR30E10W 0.3 OHMS SILICONE 5% Ohmite |
2,395 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 300 mOhms | ±5% | 10W | Wirewound | - | ±90ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
TA303PA75R0JERES 75 OHM 5% 3W POWERCHIP Ohmite |
4,933 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 75 Ohms | ±5% | 3W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 0.620" (15.75mm) | 2 | - |
|
41J15RE1W 15 OHMS SILICONE 5% Ohmite |
3,538 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 15 Ohms | ±5% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
45J2K7E5W 2K7 OHMS SILICONE 5% Ohmite |
1,893 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 2.7 kOhms | ±5% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
41J1K2E1W 1K2 OHMS SILICONE 5% Ohmite |
1,851 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 1.2 kOhms | ±5% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
83F49R93W 49.9 OHMS SILICONE 1% Ohmite |
3,622 |
|
Datasheet |
Acrasil® 80 | Box | Active | 49.9 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.217" Dia x 0.594" L (5.50mm x 15.10mm) | - | 2 | - |
