Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
41J1K5E1W 1K5 OHMS SILICONE 5% Ohmite |
4,709 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 1.5 kOhms | ±5% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

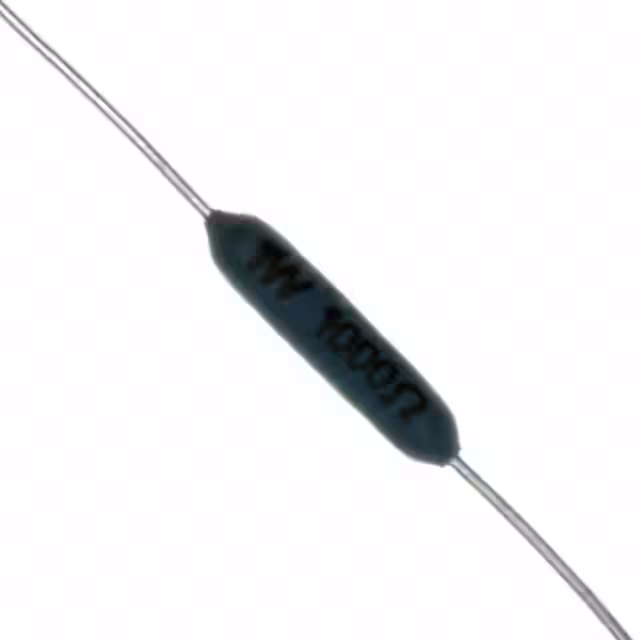

41J1K0E1W 1K0 OHMS SILICONE 5% Ohmite |
4,774 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 1 kOhms | ±5% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
25J5K05W 5K OHMS VITREOUS 5% NON ROHS Ohmite |
4,404 |
|
Datasheet |
20 | Bulk | Active | 5 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
TA305PA470RJEPOWER CHIP 5 WATT Ohmite |
4,407 |
|
Datasheet |
Power Chip® TA | Tray | Active | 470 Ohms | ±5% | 5W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Radial | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.067" (27.10mm) | 4 | - |
|
|
TA305PA47R0JEPOWER CHIP 5 WATT Ohmite |
2,797 |
|
Datasheet |
Power Chip® TA | Tray | Active | 47 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Radial | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.067" (27.10mm) | 4 | - |
|
41F1K1E1W 1K1 OHMS SILICONE 1% Ohmite |
3,294 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 1.1 kOhms | ±1% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
|
41F1K8E1W 1K8 OHMS SILICONE 1% Ohmite |
1,202 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 1.8 kOhms | ±1% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
93J27RE3.25W 27 OHMS VIT MOLD 5% Ohmite |
1,948 |
|
Datasheet |
90 | Bulk | Active | 27 Ohms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.233" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|
B20J82RE20W 82 OHMS VIT 5% Ohmite |
1,018 |
|
Datasheet |
B20 | Bulk | Active | 82 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
|
25J11KE5W 11K OHMS VITREOUS 5% Ohmite |
2,322 |
|
Datasheet |
20 | Bulk | Active | 11 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
